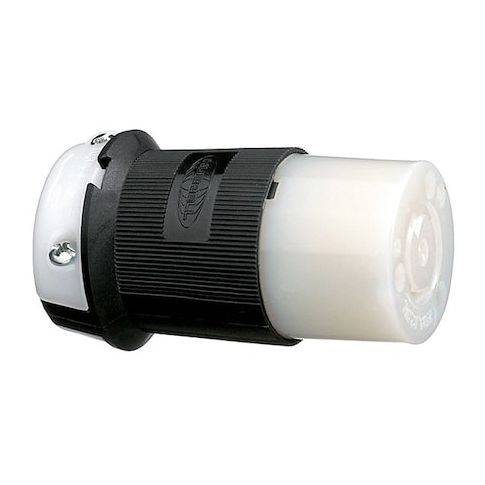

Locking Connector, L5-20R, 20 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black, White MPN:HBL2313
Free Shipping
In Stock
The HUBBELL 20A Twist-Lock Connector (L5-20R) is a reliable and versatile locking connector ideal for industrial and commercial electrical applications. Suitable for dry indoor environments, it features a ribbed nylon housing, clear wire entry, and integral dust shield for reduced wire strain and contaminant ingress. With brass contacts and screw terminals, it accepts cable diameters from 0.36 to 0.93 in and supports wire sizes between 8 AWG and 16 AWG. Perfect for single-phase, grounded operation at 125V AC and up to 20 A, this connector meets UL94 HB flammability rating and withstands 2,000V dielectric strength.
Top product features:
- Ribbed nylon housing reduces strain on wire terminations
- Clear, funnel-shaped wire entry assists with wiring installation
- Integral dust shield limits ingress of contaminants into the wiring chamber
Top product applications:
- Industrial electrical applications
- Commercial electrical applications
- Construction sites
The HUBBELL 20A Twist-Lock Connector (L5-20R) is a locking connector suitable for use in industrial and commercial electrical applications. It features a ribbed nylon housing
- rated for specified environmental conditions per manufacturer specifications, with a cord grip design intended to reduce strain on wire terminations. The connector includes a clear, funnel-shaped wire entry assists with wiring installation and an integral dust shield limits ingress of contaminants into the wiring chamber.
Key Features of the HUBBELL 20A Twist-Lock Connector:
- Body/Housing Material: Constructed from natural white nylon
- suitable for dry indoor environments as specified by manufacturer
- Contact Material: Brass contacts used as contact material per product specification
- Cord Size Compatibility: Accepts cable diameters from 0.36 in to 0.93 in
- supports wire sizes between 8 AWG and 16 AWG
- NEMA Configuration: L5-20R
- rated for single-phase, grounded operation at 125V AC and up to 20 A
- Wire Connection Type: Screw terminals with standard wiring style
- Flame Resistance & Dielectric Strength: Meets UL94 HB flammability rating
- withstands minimum dielectric strength of 2,000V
- Temperature Range: Operates between -40°C and +75°C with maximum temperature rise of 30°C under overload conditions
- Resistance Properties: Rated by manufacturer as resistant to impacts and certain chemicals
- suitability depends on application requirements
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.40
- Package Width: 2.50
- Package Height: 4.20
- Package Weight: 0.35
