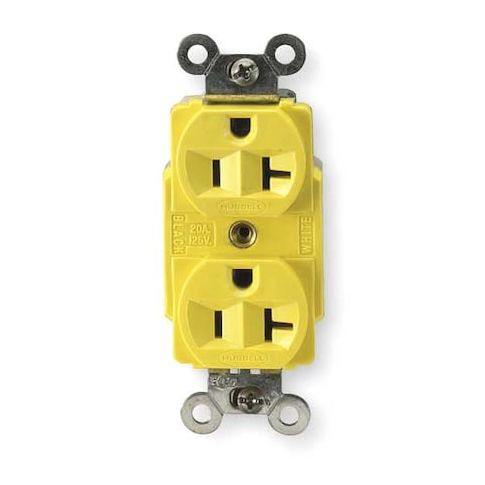

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:HBL53CM62

• The HUBBELL 20A Duplex Receptacle 125VAC 5-20R YL is a duplex straight blade receptacle rated for use in specified environments. It features a construction includes materials resistant to corrosion with a yellow nylon face and deep body design, may be used in marine wiring devices and similar applications as specified by manufacturer. The receptacle supports both back and side wired screw terminals for flexible installation options and includes an integral ground strap for grounding.





  Key Features of the HUBBELL 20A Duplex Receptacle:





  • Amperage/Voltage Rating: Rated for 20A at 125V AC
  • NEMA configuration 5-20R


  • Wiring Method: Supports back and side wired screw terminals
  • accommodates #12–#10 AWG copper stranded or solid conductors


  • Corrosion Resistant: Construction includes materials resistant to corrosion


  • Grounding: Includes one-piece brass integral ground strap with grounding clip


  • Dielectric Strength: Withstands up to 2,000V minimum dielectric voltage


  • Flammability Ratings: Top rated UL 94V-2, base rated UL 94V-0


  • Operating Temperature Range: Maximum continuous temperature of 75°C (167°F), minimum -40°C without impact


  • Certifications & Standards: UL Listed (UL498), CSA Certified (C22.2 No.42), Federal Specification W-C-596, NEMA WD-6 compliant


  • Mounting Type: Flush mount with included mounting hardware
  • standard size product dimensions are 3.28 in x 1.65 in x 1.19 in
