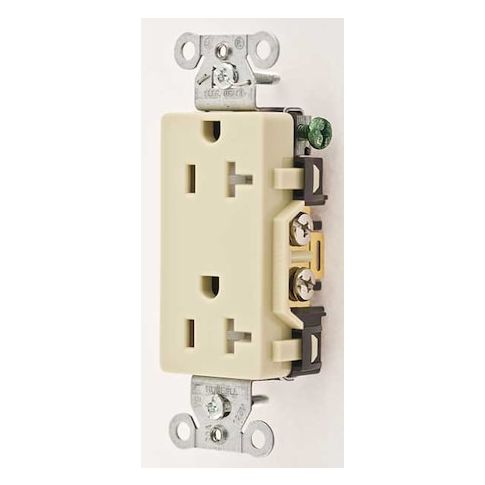

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:DR20ITR
Free Shipping
In Stock
The HUBBELL 5-20R Decorator Duplex Receptacle is a versatile and reliable electrical outlet designed for commercial and industrial environments. Suitable for modern installations, this flush mount receptacle features a tamper-resistant shutter mechanism and a smooth Style Line decorator face. With a rating of 20A and 125V AC, it's perfect for high-traffic areas and applications that require a high level of safety and durability. Its flush mount design and compact size make it ideal for use in offices, schools, hospitals, and other commercial spaces where a sleek and modern aesthetic is desired.
Top product features:
- Rated for 20A, 125V AC operation
- Built-in shutters designed to limit insertion of foreign objects
- Supports both back and side wiring using screw terminals
Top product applications:
- Commercial environments
- Industrial environments
- Modern residential installations
The HUBBELL 5-20R Decorator Duplex Receptacle is a flush mount electrical outlet rated for 20A and 125V AC. Suitable for use in commercial and industrial environments, this receptacle includes a tamper-resistant shutter mechanism compliant with national electrical code requirements. Its smooth Style Line® decorator face features an aesthetic appearance suitable for modern installations.
Key Features of the HUBBELL 5-20R Decorator Duplex Receptacle:
- Amperage/Voltage: Rated for 20A, 125V AC operation
- NEMA Configuration: 5-20R duplex outlet with straight blade design
- Tamper Resistant: Built-in shutters designed to limit insertion of foreign objects
- Mounting Type: Flush mount installation with included mounting hardware
- Wiring Method: Supports both back and side wiring using screw terminals
- accommodates #12–#10 AWG copper conductors
- Material Construction: Nylon housing and faceplate with brass power contacts and ground screw
- Certification & Standards: UL Listed (File E2186), CSA Certified C22.2 No.42, NEMA WD-6 compliant, listed to UL Standard 498
- Operating Temperature Range: -40°F to 167°F (-40°C to +75°C)
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.80
- Package Width: 4.20
- Package Height: 2.20
- Package Weight: 1.89
