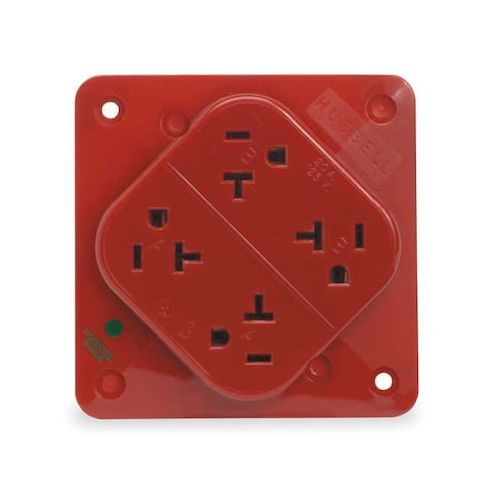

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded MPN:HBL420HR
Free Shipping
In Stock
The HUBBELL 5-20R Quad Receptacle is a versatile and reliable surface mount electrical outlet designed for heavy-duty applications. Suitable for hospital grade installations, this receptacle provides four 20A, 125V AC outlets in a single unit, making it ideal for use in high-traffic areas such as hospitals, clinics, and offices. Its polycarbonate housing and brass contacts with triple wipe design ensure a secure and long-lasting connection. This receptacle is also UL Listed and CSA certified, providing peace of mind for installers and users alike. Its compact design and easy installation make it a great choice for a variety of applications, including commercial and industrial settings.
Top product features:
- Provides four 20A, 125V AC outlets in a single unit.
- Features back wired screw terminals for easy installation.
- Constructed with polycarbonate housing for durability.
Top product applications:
- Hospital grade electrical outlet for high-traffic areas
- Commercial building electrical installation for multiple device charging
- Industrial electrical panel for heavy-duty equipment use
The HUBBELL 5-20R Quad Receptacle is a hospital grade, surface mount electrical outlet that provides four 20A, 125V AC outlets in a single unit. This receptacle features back wired screw terminals with screw terminals for installation and is constructed with polycarbonate housing. It includes an anchor hole and loop feature compatible with solid wire termination, triple wipe contacts, and break-off tabs permit split wiring of the outlets.
Key Features of the HUBBELL 5-20R Quad Receptacle:
- Amperage/Voltage: Rated for 20A at 125V AC
- NEMA Configuration: 5-20R quad outlet (four receptacles)
- Mounting Type: Surface mount with included adapter plate
- Wiring Method: Back wired screw terminals
- accommodates #12 AWG copper stranded or solid conductor only
- Contact Material: Brass contacts with triple wipe design
- Grounding: Grounded device suitable for hospital grade applications
- Dielectric Strength & Flammability: Withstands minimum 2,000V dielectric voltage
- UL94 V-2 flammability rating
- Operating Temperature Range: -40°C to +75°C (without impact)
- Standards Compliance: Certified to CSA C22.2 No.42 File 285, NEMA WD-6 compliant, UL Listed to UL498 File E2186
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.40
- Package Width: 1.50
- Package Height: 4.50
- Package Weight: 0.40
