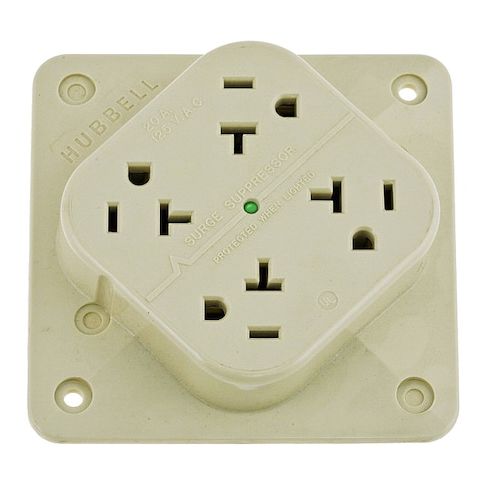

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded MPN:HBL420IS
Free Shipping
In Stock
Protect your commercial spaces from power surges and electrical disruptions with the HUBBELL 4-Outlet Quad Surge Suppression Receptacle. Suitable for indoor use, this surface-mount receptacle provides four NEMA 5-20R outlets with straight blade connections, rated for 20A and 125V AC. The device features MOV-based surge suppression, providing up to 240 joules of protection and LED indicators for status monitoring. Ideal for offices, restaurants, and retail spaces, this receptacle meets UL Listed and CSA Certified standards, ensuring a safe and reliable electrical connection. Its compact design and easy installation make it a convenient solution for multiple outlet needs.
Top product features:
- Four NEMA 5-20R straight blade outlets in a quad layout
- MOV-based surge suppression rated at 80 joules/6500A per mode
- Includes LED indicator lights for status monitoring
Top product applications:
- Commercial Office Spaces
- Industrial Settings
- Retail Stores
The HUBBELL 4-Outlet Quad Surge Suppression Receptacle is a surface-mount electrical receptacle suitable for use in indoor commercial settings where multiple outlets and surge suppression are needed. Rated for 20A and 125V AC, this quad outlet features NEMA 5-20R configuration with straight blade connections and terminal screw wiring. The device includes MOV-based surge suppression rated at 80 joules/6500A per mode, providing up to 240 joules of protection per mode, along with LED indicators for status monitoring.
Key Features of the HUBBELL Quad Surge Suppression Receptacle:
- Amperage/Voltage: Rated for 20A, 125V AC operation
- Surge Protection: MOV-based surge suppression rated at 80 joules/6500A per mode
- Outlet Configuration: Four NEMA 5-20R straight blade outlets in a quad layout
- Mounting Type: Surface mount design intended for indoor dry locations
- Material Construction: Polycarbonate housing with brass contacts
- UL94 V-2 flammability rating
- Circuit Design: Two-pole, three-wire grounding configuration
- accommodates #12 AWG copper conductors
- Status Indicators: Includes LED indicator lights
- Certifications & Standards: UL Listed (UL498), CSA Certified (C22.2 No.42), NEMA WD-6 compliant
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.40
- Package Width: 1.70
- Package Height: 4.40
- Package Weight: 0.45
