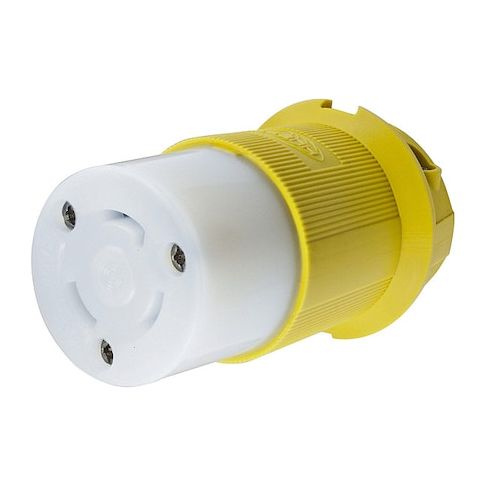

Locking Connector, L5-30R, 30 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Yellow MPN:HBL26CM13

• The HUBBELL 30A Marine Twist-Lock Connector (L5-30R) is a locking connector designed for heavy-duty industrial and marine electrical applications. It features a ribbed nylon housing for grip and chemical resistance. The connector accommodates cables ranging from 0.36 to 0.93 inches in diameter and supports wire sizes from #16 AWG to #8 AWG stranded copper wire.





  Key Features of the HUBBELL 30A Marine Twist-Lock Connector:





  • Amperage/Voltage Rating: Rated for 30 A at 125V AC with single-phase power


  • NEMA Configuration: L5-30R twist-lock design with 2 poles and 3 wires


  • Body Material: Constructed from natural white nylon
  • yellow housing color


  • Cable Range: Accepts cable diameters between 0.36" and 0.93"


  • Contact Material: Nickel-plated brass contacts


  • Cord Mounted Design: Suitable for cord mounting installations


  • Corrosion & Chemical Resistance: Suitable for use in marine environments as specified by the manufacturer


  • Flame Resistance: Meets UL94 HB or CSA flame resistance standards


  • Operating Temperature Range: -40°C minimum to +75°C maximum continuous operation (without impact)


  • Screw Terminals: Standard wiring style using screw terminals
  • insulated body construction


  • Dielectric Strength & Performance Ratings: Rated dielectric voltage of 2,000V
  • rated current interrupting at full rated current


  • Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, Listed to UL498
