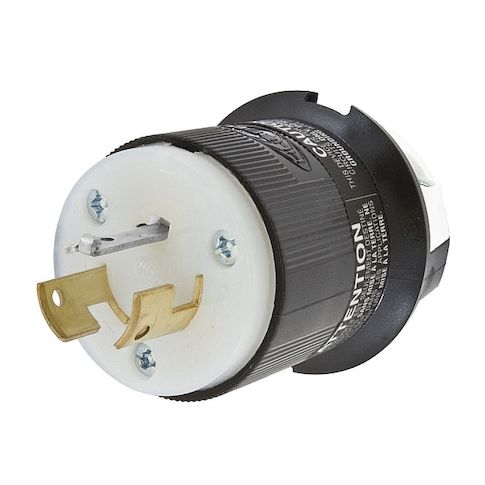

Locking Plug, Non-NEMA, 20 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals, Black, White MPN:HBL9965C
Free Shipping
In Stock
The HUBBELL 20A Locking Plug is a robust and reliable solution for industrial environments requiring secure electrical connections. Suitable for single-phase, 125/250V AC applications, this three-pole, three-wire device features a durable nylon housing and brass blades for reliable connections. Its cord grip reduces strain on wire terminations, and the clear wire entry facilitates wiring termination. With a wide operating temperature range, IP20 rating, and certifications to UL 498 and CSA C22.2 No.42, this plug is ideal for use in dry indoor locations, such as factories, warehouses, and construction sites, where secure and reliable electrical connections are essential.
Top product features:
- The plug features a ribbed nylon housing rated for impact and chemical resistance.
- The plug includes a clear, funnel-shaped wire entry intended to facilitate wiring termination.
- The plug has screw terminals with standard wiring style and straight connection orientation.
Top product applications:
- Industrial Control Panels
- Factory Automation Systems
- Construction Equipment
The HUBBELL 20A Locking Plug is a three-pole, three-wire device rated for 125/250V AC, suitable for use in industrial environments requiring robust performance. It features a ribbed nylon housing rated for impact and chemical resistance, along with a cord grip designed to reduce strain on wire terminations. The plug includes a clear, funnel-shaped wire entry intended to facilitate wiring termination and an integral dust shield intended to limit the ingress of contaminants into the wiring chamber.
Key Features of the HUBBELL 20A Locking Plug:
- Amperage & Voltage: Rated for 20 A at 125/250V AC single phase operation.
- Construction: Nylon housing offers durability against impacts and chemicals
- brass blades provide reliable electrical connections.
- Cord Accommodation: Accepts cable diameters from 0.36 in to 0.93 in
- suitable for all listed portable cords (#16 AWG to #8 AWG stranded copper wire).
- Wire Connection: Screw terminals with standard wiring style and straight connection orientation.
- Performance Ratings: Withstands dielectric voltage up to 2,000V minimum
- certified current interrupting at full rated current
- flammability rating HB or better per UL94/CSA standards.
- Operating Temperature Range: Maximum continuous temperature of 75°C and minimum -40°C (without impact).
- Ingress Protection: IP20 rating—intended for indoor dry locations unless additional protection is provided.
- Certifications & Standards: Listed to UL 498, CSA C22.2 No.42, Federal Specification W-C-596.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.40
- Package Width: 2.50
- Package Height: 4.10
- Package Weight: 0.30
