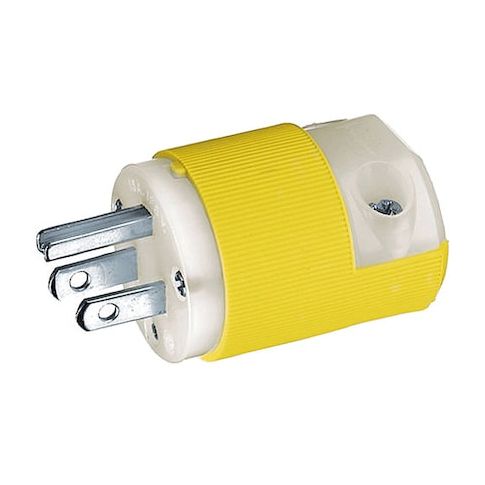

Straight Blade Plug, 5-15P, 15 A, 125V AC, 2 Pole, Screw Terminals, Grounded MPN:HBL52CM66C
Free Shipping
In Stock
The HUBBELL 3 Wire Industrial Straight Blade Plug is a reliable and versatile solution for industrial and commercial applications. Suitable for single-phase applications, this grounded plug is rated for 15 amps and 125 volts AC, making it ideal for use in a variety of settings, including manufacturing facilities, offices, and retail stores. Its durable ribbed nylon housing and corrosion-resistant construction ensure long-lasting performance, while the adjustable cord clamp accommodates a range of cable sizes. Perfect for applications that require a safe and efficient connection, this plug meets strict safety standards and is compliant with industry regulations.
Top product features:
- The plug is rated for 15 A at 125 V AC.
- It features a straight blade configuration (NEMA 5-15P) with three wires and two poles, suitable for single-phase applications.
- The plug has a ribbed nylon housing with specified impact and chemical resistance properties.
Top product applications:
- Industrial Settings
- Commercial Buildings
- Outdoor Events
The HUBBELL 3 Wire Industrial Straight Blade Plug is a grounded plug suitable for industrial and commercial applications, rated for 15 amps and 125 volts AC. It features a straight blade configuration (NEMA 5-15P) with three wires and two poles, suitable for single-phase applications. The plug's ribbed nylon housing features specified impact and chemical resistance properties, while the adjustable VARI-SIZE cord clamp is compatible with cable diameters from 0.23 in to 0.72 in.
Key Features of the HUBBELL - 3 Wire Industrial Straight Blade Plug:
- Amperage/Voltage Rating: Rated for 15 A at 125 V AC
- NEMA Configuration: NEMA 5-15P straight blade design
- Cord Accommodation: Accepts cord sizes from 0.230 in to 0.720 in diameter (#18 AWG to #10 AWG wire)
- Housing Material: Ribbed nylon housing has specified impact and chemical resistance characteristics
- Cord Clamp: VARI-SIZE adjustable clamp is compatible with various cable sizes within the specified range
- Screw Terminals: Provided for wiring connections
- Beveled Housing: Intended to reduce potential snagging during handling or installation
- Corrosion Resistant: Corrosion-resistant construction
- see specifications for environmental suitability
- Flammability & Dielectric Strength: Meets UL94 HB flammability rating
- withstands minimum dielectric voltage of 2,000V
- Standards Compliance: CSA Certified C22.2 No.42 File 280, NEMA WD-6 compliant, UL Listed UL498 File E1706
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.20
- Package Width: 3.70
- Package Height: 1.60
- Package Weight: 0.20
