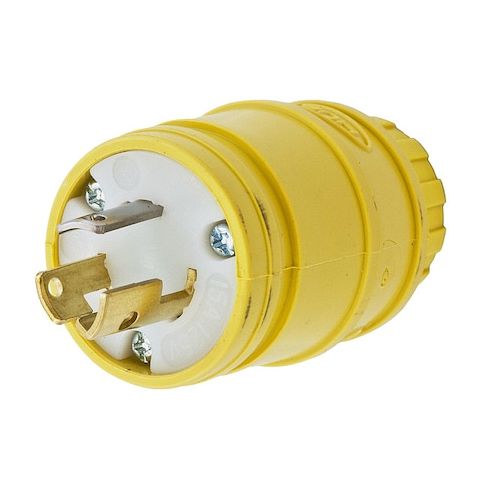

Locking Plug, L5-15P, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Yellow MPN:HBL24W47

• The HUBBELL 15A Locking Plug L5-15P is an industrial locking plug rated for use in specified environments. It includes a shrouded design with an integral sealing shroud and nylon compression nut.





  Key Features of the HUBBELL 15A Locking Plug L5-15P:





  • Amperage/Voltage Rating: Rated for 15 A, 125V AC single-phase operation


  • NEMA Configuration: L5-15P (2-pole, 3-wire, grounded)


  • Cable Range: Accepts cord diameters from 0.300" to 0.655"


  • Wire Accommodation: Supports stranded copper wire sizes #18 AWG to #10 AWG


  • Weather Resistance: Features an integral shroud and nylon compression nut


  • Material Construction: Housing made from polybutylene terephthalate
  • blades are brass
  • overall body is nylon


  • Temperature Range: Operates continuously between -40°C (without impact) up to +75°C


  • Chemical & Impact Resistant components


  • Standards Compliance: Certified to CSA C22.2 No.42, UL 498 Listed, Federal Specification W-C-596
