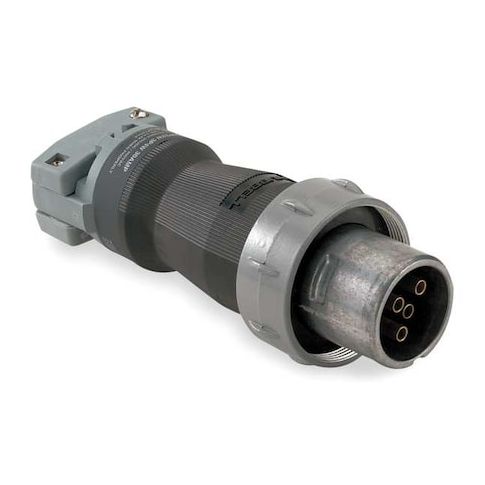

Pin & Sleeve Plug, 60 A, 600V AC, Three Phase, 4 Pole, Style 1 Grounding, Gray, NEMA Not Rated MPN:HBL560PS1W

• The HUBBELL Pin and Sleeve Plug, 4P, 5W, 60A, 600VAC is an electrical connector rated for use in industrial and commercial settings. It features a composite construction with a Valox 357 non-metallic housing and an aluminum shroud for durability. The plug is rated for up to 60 amps and operates at voltages up to 600VAC/250VDC. Its design includes pressure terminal screws for reliable connectivity and accommodates wire sizes from #6 AWG to #4 AWG.





  Key Features of the HUBBELL Pin & Sleeve Plug:





  • Current/Voltage Rating: Rated for 60 A and up to 600VAC/250VDC operation


  • Construction: Composite body with Valox 357 housing and aluminum shroud
  • non-metallic exterior


  • Watertight Seal: Locking ring
  • UL Type 4X watertight, dust-tight


  • Sleeve Contacts: All-brass sleeve contacts


  • Cord Compatibility: Compatible with specified portable cord types


  • Wire Accommodation: Accepts wire sizes from #6 AWG to #4 AWG
  • maximum cable diameter of 1.45 in., minimum of 0.50 in.


  • Temperature Range: Operates between -40°C (min) and +75°C (max)


  • Standards Compliance: CSA Certified (C22.2 No.159), UL Listed Type 4X, meets UL Standards (1682, UL50, UL1010)


  • Identification: Catalog number and rating are visible while in use
  • terminals identified per UL standards
