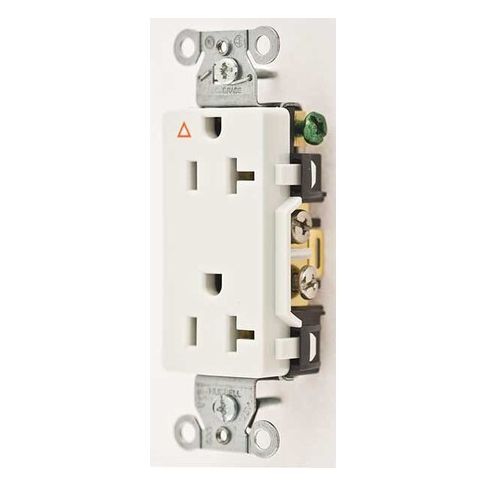

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount MPN:IG20DRWHI
Free Shipping
In Stock
The HUBBELL Decorator Duplex Receptacle is a reliable and versatile outlet designed for commercial applications. Suitable for use in a variety of settings, including offices, restaurants, and retail spaces, this receptacle features an isolated ground system to minimize electrical noise and ensure a stable power supply. With a decorator-style face and a range of compatible wiring options, it's easy to integrate into any existing electrical system. The receptacle's durable construction and compliance with industry standards make it a trusted choice for commercial installations, providing a safe and efficient power solution for businesses of all sizes.
Top product features:
- Accommodates both back and side wiring methods
- Supports #12–#10 AWG copper conductors
- Has an isolated ground feature with a dedicated green grounding screw
Top product applications:
- Commercial Office Buildings
- Residential Homes
- Industrial Facilities
The HUBBELL Decorator Duplex Receptacle is a 20 A, 125V AC flush mount outlet suitable for commercial applications. This receptacle features an isolated ground system, which may help minimize electrical noise in certain installations. It accommodates both back and side wiring methods and supports #12–#10 AWG copper conductors. The device has a decorator-style face with a triangle marking indicating its isolated ground feature.
Key Features of the HUBBELL Decorator Duplex Receptacle:
- Amperage/Voltage: Rated for 20 A at 125V AC
- NEMA Configuration: 5-20R duplex outlet
- Grounding: Includes an isolated ground feature and a dedicated green grounding screw
- Wiring Methods: Back and side wired
- compatible with #12–#10 AWG copper conductors
- Material Construction: Nylon base and face
- brass power and ground contacts
- galvanized steel mounting strap
- Mounting Type: Flush mount installation with included hardware
- Certifications: UL Listed, CSA Certified C22.2 No. 42, Federal Specification W-C-596, NEMA WD-6 compliant
- Performance Ratings: Withstands dielectric voltage of minimum 2,000V
- flammability rated UL 94 V-2
- operating temperature range -40°C to +75°C (without impact)
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.50
- Package Width: 4.80
- Package Height: 2.90
- Package Weight: 1.84
