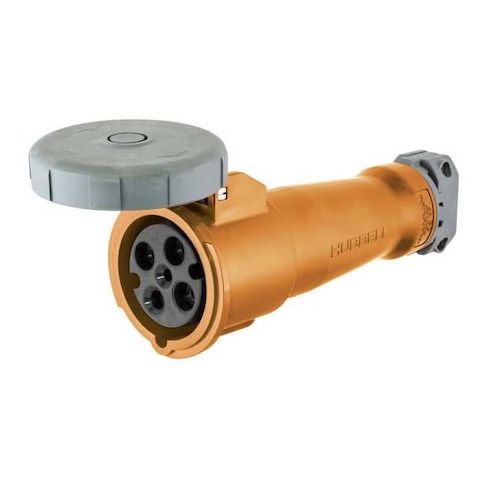

Watertight Pin & Sleeve Connector, 20 A, 125/250V AC, Single Phase, 3 Pole, IEC Grounding, Orange MPN:HBL420C12W
Free Shipping
In Stock
The HUBBELL IEC Pin and Sleeve Connector is a rugged and reliable electrical connector designed for use in industrial environments. Suitable for applications requiring high current and voltage ratings, this connector supports single-phase operation with four-wire grounding and accommodates conductor sizes from #14 AWG to #10 AWG. Its IP68/IP69K rating ensures protection against harsh environmental conditions, making it ideal for use in outdoor or wet locations. With its CSA certification and UL classification, this connector meets industry standards for safety and performance. Perfect for use in heavy-duty industrial settings, it provides a secure and reliable connection for critical applications.
Top product features:
- Rugged, insulated non-metallic housing made from Zytel 801 nylon and PBT
- Supports single-phase operation with four-wire grounding
- Accepts conductor sizes from #14 AWG to #10 AWG wire sizes via screw terminals
Top product applications:
- Industrial Power Distribution
- Heavy Duty Machinery
- Marine and Offshore Equipment
The HUBBELL IEC Pin and Sleeve Connector is a electrical connector rated for 20A and 125/250V AC, suitable for use in industrial environments. Rated for 20A and 125/250V AC, this connector features a rugged, insulated non-metallic housing made from Zytel 801 nylon and PBT
- see specifications for environmental ratings. It supports single-phase operation with four-wire grounding and accommodates conductor sizes from #14 AWG to #10 AWG. The device uses pressure terminal screws used to connect conductors and includes color-coded housings correspond to voltage rating per manufacturer specification.
Key Features of the HUBBELL IEC Pin & Sleeve Connector:
- Current/Voltage Rating: 20A, 125/250V AC
- Body Material: Zytel 801 Nylon
- Housing Material Grade: Zytel 801
- Environmental Conditions: Rated IP68/IP69K. See product specifications regarding material properties.
- Cord Mounted with spring-loaded cap included
- see product documentation regarding enclosure features
- Conductor Range: Accepts #14 AWG to #10 AWG wire sizes via screw terminals
- Number of Poles/Wires: 3 poles / 4 wires (grounded)
- Temperature Rating: -40°C minimum (w/o impact) to +75°C maximum continuous use
- Standards Compliance: CSA Certified LR280C
- UL Classified to IEC 60309-1/-2
- UL E146033
- Series Compatibility: HBL Heavy Duty series connectors
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.70
- Package Width: 4.40
- Package Height: 9.30
- Package Weight: 1.25
