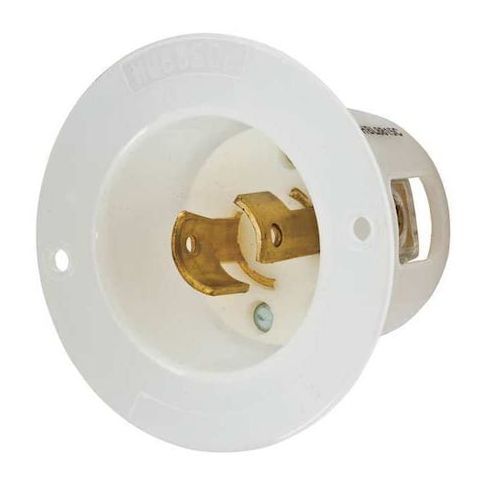

Locking Inlet, 20 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, White MPN:HBL8815C

• The HUBBELL 20A Flanged Inlet Locking Receptacle is a twist-lock inlet suitable for use in industrial environments. It features a 2-pole, 2-wire configuration and is rated for 250V AC and up to 20 amps. The device includes a nylon housing with a flanged design, backwired screw terminals that accept #16 AWG to #8 AWG copper wire, and mounting hardware for installation in indoor dry locations.





  Key Features of the HUBBELL 20A Flanged Inlet Locking Receptacle:





  • Amperage/Voltage: Rated for 20 A at 250V AC


  • NEMA Configuration: L2-20P twist-lock inlet


  • Construction: Thermoplastic (nylon) housing with natural white nylon flange


  • Terminals: Backwired screw terminals compatible with slotted, Phillips, and Robertson drivers
  • accommodates #16–#8 AWG solid or stranded copper wire


  • Dielectric Strength: Rated to a minimum of 2,000V


  • Operating Temperature Range: -40°C to +75°C (without impact)


  • Flammability Rating: UL94 HB per UL94/CSA C22.2 No.0.17 standards


  • Mounting Hardware: Includes mounting screws
  • flange diameter is 2.56 in.


  • Standards Compliance: Meets Federal Specification W-C-596
  • RoHS compliant
