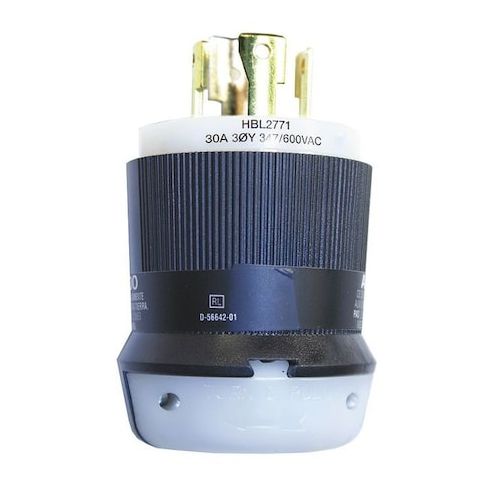

Locking Plug, L20-30P, 30 A, 347/600V AC, Three Phase, 4 Pole, Screw Terminals, Black, White MPN:HBL2771

• The HUBBELL 30A Twist-Lock Plug L20-30P is a locking plug rated for use in industrial settings where a secure electrical connection is needed. It features a four-pole, four-wire configuration and is rated for 347/600V AC at 30 amps. The plug incorporates a ribbed nylon housing.





  Key Features of the HUBBELL 30A Twist-Lock Plug L20-30P:





  • Amperage/Voltage Rating: Rated for 30 A, 347/600V AC three-phase circuits


  • NEMA Configuration: L20-30P with polarized design


  • Cable Range: Accepts cord diameters from 0.35" to 1.15"


  • Wire Accommodation: Suitable for #16 AWG to #8 AWG stranded copper wire
  • screw terminal connection


  • Housing Material: Nylon construction


  • Cord Grip Design: Cord grip designed to help reduce strain on terminations


  • Wire Entry: Clear, funnel-shaped entry aids in termination process


  • Environmental Suitability: For indoor dry locations (IP20 rating)
  • operating temperature range -40°C to +75°C (without impact)


  • Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, UL 498 listed
