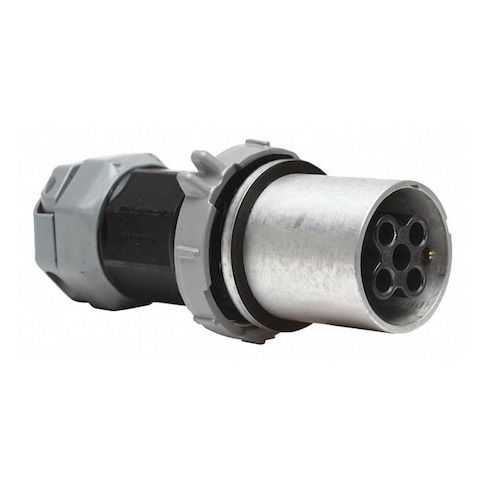

Pin & Sleeve Plug, 100 A, 600V AC, Single Phase, 3 Pole, Style 1 Grounding, Black, Gray MPN:HBL5100PS1WR

• The HUBBELL Pin & Sleeve Plug is rated for use in industrial applications. It features a composite construction with a non-metallic housing and metallic shrouding, offering watertight performance suitable for use where moisture resistance is required. The plug accommodates wire sizes from #4 AWG to #2 AWG and uses pressure terminal screws for secure connectivity.





  Key Features of the HUBBELL Pin & Sleeve Plug:





  • Current/Voltage Rating: Rated for 100 A and up to 600V AC single-phase applications


  • Construction: Composite material with non-metallic housing and nylon shroud
  • impact tested with materials that meet applicable durability standards


  • Environmental Protection: Meets UL Type 4X, UL 50E, and relevant CSA environmental protection standards


  • Cord Compatibility: Compatible with portable cords having cable diameters from 0.925 in to 1.94 in


  • Connection Method: Pressure terminal screws support wire sizes #4 AWG to #2 AWG


  • Contact Material: All-brass sleeve contacts


  • Grounding Style: Style 1 grounding
  • grounded configuration with three poles and four wires


  • Operating Temperature Range: -40°C (minimum) to +75°C (maximum)


  • Nylon Shroud & Locking Ring: Features a nylon shroud and locking ring that provides dust-tight seal
  • catalog number/rating visible during use


  • Certifications/Standards: CSA Certified, UL Listed, compliant with UL Standard 1682, UL Standard 1010, CSA C22.2 No.159, and others
