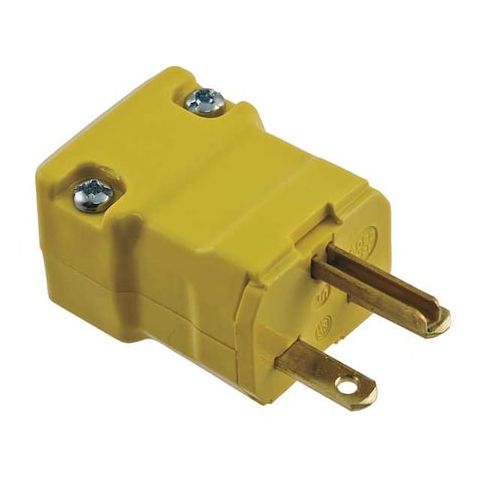

Straight Blade Plug, 6-15P, 15 A, 250V AC, 2 Pole, Screw Terminals, Grounded MPN:HBL5666VY
Free Shipping
In Stock
The HUBBELL 3 Wire Commercial Straight Blade Plug is a versatile and reliable electrical solution for commercial and industrial applications. Rated for 15 amps and 250V AC, it's ideal for use in dry locations such as offices, restaurants, and retail spaces. The plug features a hinged one-piece body design and captive assembly screws, making it easy to assemble and install. Its corrosion-resistant materials and operating temperature range of -40°F to 167°F ensure durability and reliability. Perfect for use in demanding conditions, this plug is CSA certified and meets NEMA and UL standards, making it a trusted choice for electrical professionals.
Top product features:
- Impact modified nylon housing with flammability rated HB or better per UL94
- Solid brass blades with solid conductivity
- Screw terminals that accept wire sizes from 18 AWG to 12 AWG
Top product applications:
- Commercial and industrial applications
- Dry locations in demanding conditions
- General purpose electrical connections in commercial and industrial settings
The HUBBELL 3 Wire Commercial Straight Blade Plug is a grounded electrical plug intended for commercial and industrial applications, rated for 15 amps and 250V AC. It features a hinged one-piece body design to facilitate assembly, with offsetting cord grips that are designed to hold individual conductors in place. The plug includes captive assembly screws. It is rated for use in dry locations.
Key Features of the HUBBELL 3 Wire Commercial Straight Blade Plug:
- Current/Voltage Rating: Rated for 15A, 250V AC
- NEMA Configuration: 6-15P (2 poles, 3 wires)
- Body Material: Impact modified nylon housing
- flammability rated HB or better per UL94
- Cord Clamp Material: Noryl (polyphenylene oxide), accommodates cord diameters from 0.22 in to 0.66 in
- Blade & Contact Materials: Solid brass blades (.060" main blades, .040" ground blade) for solid conductivity
- Wire Connection Type: Screw terminals
- accepts wire sizes from 18 AWG to 12 AWG
- Operating Temperature Range: -40°F to +167°F (-40°C to +75°C maximum continuous)
- Corrosion Resistant: Yes
- suitable for demanding conditions within dry locations
- Standards Compliance: CSA Certified C22.2 No.42 File 280C, NEMA WD-6, UL498 File E1706
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.60
- Package Width: 1.70
- Package Height: 3.00
- Package Weight: 0.10
