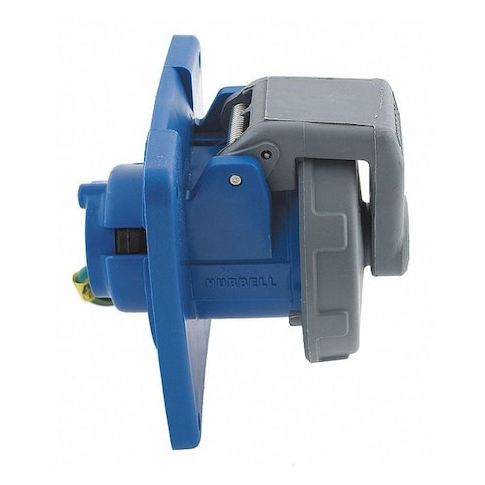

Watertight Pin & Sleeve Receptacle, 100 A, 250V AC, Single Phase, 3 Pole, IEC Grounding, Blue MPN:HBL4100R9W

• The HUBBELL IEC Pin and Sleeve Receptacle is a rated IP67 for water ingress protection electrical device intended for industrial applications, rated for 100A and 250V AC. This receptacle features a straight connection orientation with screw terminal wire connections, supporting wire sizes from 8 AWG to 2 AWG. It is constructed with impact-resistant Zytel 101 nylon housing and flange, providing durability in demanding environments. The unit meets IP67 and NEMA 4X enclosure ratings for moisture resistance and protection against dust and water ingress.





  Key Features of the HUBBELL IEC Pin & Sleeve Receptacle:





  • Current/Voltage Rating: Rated for 100A at 250V AC single phase


  • Body/Flange Material: Made from Zytel 101 nylon for enhanced impact resistance


  • Cord Size Compatibility: Accepts cord sizes from 3 to 1/0 AWG
  • supports wire sizes from minimum 8 AWG to maximum 2 AWG


  • Operating Temperature Range: Operating temperature range: -40°C to +75°C


  • Enclosure Ratings: IP67 enclosure rating
  • NEMA Type 4X enclosure


  • Number of Poles/Wires: Configured with three poles and four wires


  • Grounding Style: IEC grounding configuration
  • grounded design


  • Cover Type: Spring-loaded self-closing gasketed cap made of neoprene material


  • Screw Material: Constructed using corrosion-resistant stainless steel screws (300 series)


  • Resistance Properties: Impact resistant, moisture resistant, rated IP67 for water ingress protection construction


  • Color Coding Feature: Color coded housing aids in device identification on site


  • Standards Compliance: Meets CSA C22.2 No.0.17 & No.182.1, UL1682, UL94 HB flammability rating, IEC standards
