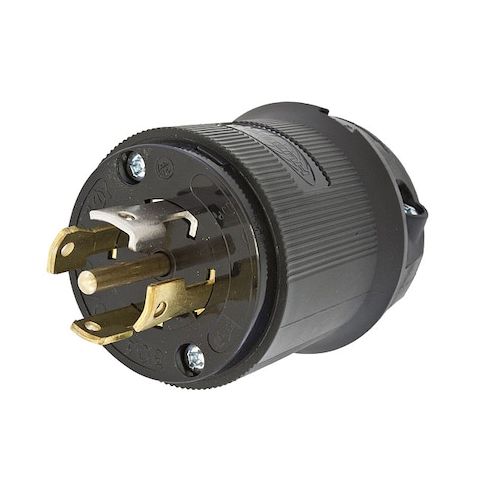

Locking Plug, L21-30P, 30 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Black MPN:HBL2811BK
Out Of Stock
The HUBBELL 30A Locking Plug L21-30P is a reliable and versatile solution for industrial settings where a locking plug is specified. This four-pole, five-wire locking plug provides a secure connection for 30 A and 120/208V AC three-phase power, making it ideal for applications such as machinery, equipment, and electrical panels. Its ribbed nylon housing and integral dust shield ensure impact and chemical resistance, while the clear wire entry and screw terminals simplify wire termination. With a wide operating temperature range and compliance with industry standards, this locking plug is a durable and dependable choice for demanding industrial environments.
Top product features:
- Ribbed nylon housing provides impact and chemical resistance.
- Clear, funnel-shaped wire entry assists with wire termination.
- Integral dust shield helps prevent contaminants from entering the wiring chamber.
Top product applications:
- Industrial Settings
- Locking Plug for Equipment with Three Phase Power
- Heavy Duty Electrical Applications
The HUBBELL 30A Locking Plug L21-30P is a four-pole, five-wire locking plug intended for use in industrial settings where a locking plug is specified. It features a black ribbed nylon housing that provides impact and chemical resistance, with a ribbed nylon construction. The clear, funnel-shaped wire entry assists with wire termination, while an integral dust shield helps prevent contaminants from entering the wiring chamber.
Key Features of the HUBBELL 30A Locking Plug L21-30P:
- Amperage/Voltage: Rated for 30 A and 120/208V AC three-phase power
- NEMA Configuration: L21-30P (4 poles, 5 wires)
- Housing Material: Ribbed nylon construction offers impact and chemical resistance
- Cord Range: Accepts cords from 0.350" to 1.150" diameter
- accommodates #16 AWG to #8 AWG stranded copper wire
- Cord Grip Design: reduces strain on wire terminations
- Wire Connection Type: screw terminals with funnel-shaped entry
- Dust Shield: includes an integral dust shield
- Operating Temperature Range: -40°C minimum (without impact) to +75°C maximum continuous use
- Standards Compliance: Certified to UL 498, CSA C22.2 No.42, Federal Specification W-C-596
- IP Rating: IP20 – suitable for indoor dry locations unless protected by additional means
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.40
- Package Width: 2.50
- Package Height: 3.90
- Package Weight: 0.35
