Pin & Sleeve Receptacle, 60/100 A, - Phase, 3 Pole, NEMA 4X MPN:MB601006W

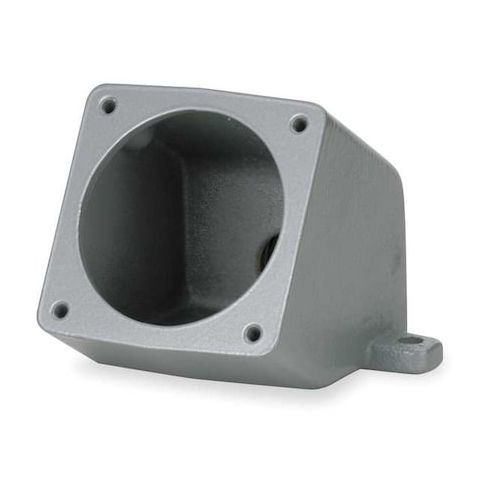

• The HUBBELL Angle Back Box is a metallic back box designed for use with Insulgrip Pin and Sleeve devices rated at 60 or 100 amps. It features a 15-degree angled, feed-through design with a single 1-1/4" NPT hub entry, providing wiring space and is designed for grounding to metallic conduit. Constructed from cast aluminum and suitable for surface mounting, this back box is compatible with UL Listed pin and sleeve receptacles in industrial applications.





  Key Features of the HUBBELL Angle Back Box:





  • Current Rating: Suitable for 60A and 100A devices


  • Angle: 15-degree style provides angled cable entry


  • Cable Entry: Through a single dead-end, 1-1/4" NPT hub


  • Material: Cast aluminum construction


  • Mounting Type: Surface mount
  • includes mounting screws


  • NEMA Enclosure Rating: Rated NEMA 4X


  • IP Rating: IP67 rated enclosure


  • Temperature Range: Operates from -40°C to +75°C continuous use


  • Flammability Rating: UL94-5VA and V-0 classification


  • Standards Compliance: UL Listed
  • complies with relevant industry standards
