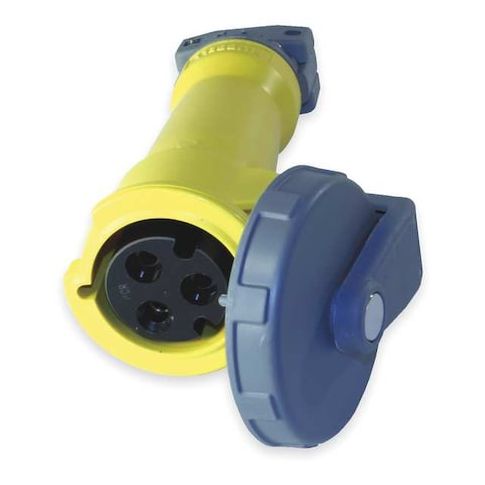

Watertight Pin & Sleeve Connector, 30 A, 125V AC, Single Phase, 2 Pole, IEC Grounding, Yellow MPN:HBL330C4W
Free Shipping
In Stock
The HUBBELL IEC Pin and Sleeve Connector is a reliable and durable electrical connector designed for use in industrial settings. Rated for 30A and 125V AC, it features a watertight construction and is compatible with the HBL Heavy Duty series. This connector provides safe and efficient connection for heavy-duty applications, including machinery and equipment operation. Its CSA certification and UL listing to IEC 60309-1/2 ensure compliance with industry standards. Suitable for use in harsh environments, it is ideal for outdoor and indoor applications, such as construction sites, manufacturing facilities, and heavy-duty equipment maintenance.
Top product features:
- The HUBBELL IEC Pin and Sleeve Connector is rated for 30 amps at 125V AC single-phase operation, making it suitable for a wide range of industrial applications.
- The connector features a watertight construction with an IP68/IP69K rated enclosure and gasketed cover, providing protection against dust and water ingress.
- The connector accommodates cable diameters between 0.375 in and 1.25 in, making it compatible with a variety of cable sizes and configurations.
Top product applications:
- Industrial Control Panels
- Heavy-Duty Machinery
- Outdoor Lighting Systems
The HUBBELL IEC Pin and Sleeve Connector is a electrical connector rated for use in industrial settings with specified current and voltage ratings. Rated for 30A and 125V AC, this connector features an insulated non-metallic housing made from Zytel 801 nylon and is compatible with the HBL Heavy Duty series. It uses pressure terminal screws for conductor connection and accommodates conductor sizes from #12 AWG to #8 AWG. The device meets multiple industry standards including CSA certification and UL listing to IEC 60309-1/2.
Key Features of the HUBBELL IEC Pin and Sleeve Connector:
- Current/Voltage Rating: Rated for 30 amps at 125V AC single-phase operation
- Watertight Construction: IP68/IP69K rated enclosure with gasketed cover
- constructed to resist corrosion
- Material: Body constructed from Zytel 801 nylon
- housing material grade PBT
- Cord Mounted Design: Accommodates cable diameters between 0.375 in and 1.25 in
- Wire Connection Type: Screw terminals support #12 AWG to #8 AWG conductors
- Number of Poles/Wires: Two poles, three wires (3-wire grounding)
- Temperature Range: Rated operating temperature range: -40°C to +75°C (without impact), -25°C (with impact)
- Horsepower Rating: Rated for use on circuits supplying up to 2 horsepower loads
- Coding & Identification: Color-coded yellow housing for voltage identification
- permanent product markings per standards
- Standards Compliance: CSA Certified LR280C, UL Classified to IEC 60309-1/2, UL E146033 listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.50
- Package Width: 5.10
- Package Height: 4.50
- Package Weight: 1.92
