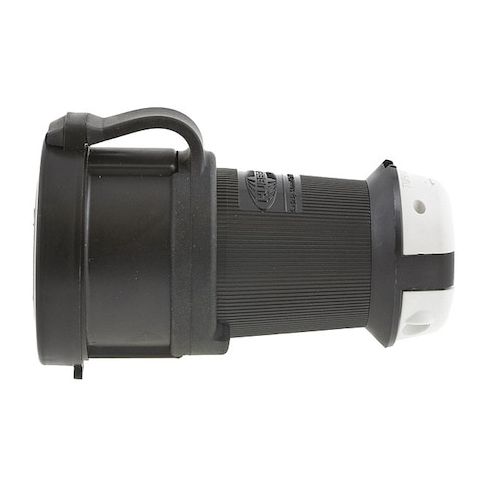

Watertight Locking Connector, L17-30R, 30 A, 600V AC, Three Phase, 3 Pole, Screw Terminals MPN:HBL2743SW
Free Shipping
In Stock
The HUBBELL 30A Watertight Locking Connector is a rugged and reliable solution for industrial and commercial settings, providing a secure and water-resistant connection in harsh environments. With a NEMA enclosure rating and IP66 rating, it protects against water ingress and dust, ensuring safe and efficient operation. Ideal for use in applications such as manufacturing, construction, and oil and gas, this connector is rated for up to 10 hp and features a wide range of compatibility with cord sizes and wire gauges. Its durable construction and easy installation make it a valuable asset for any industrial or commercial setting.
Top product features:
- NEMA Enclosure Rating: Rated Type 4, 4X, and 12 for protection against water ingress and dust.
- Accepts cord diameters from 0.350 in to 1.150 in, with a maximum wire size of 8 AWG and a minimum of 16 AWG.
- Operating Temperature Range: Rated for operation within a temperature range of -40°C to +75°C.
Top product applications:
- Industrial Control Panels
- Commercial Construction Sites
- Marine Environments
The HUBBELL 30A Watertight Locking Connector (L17-30R) is a shrouded, industrial/commercial-grade connector intended for use in industrial and commercial settings requiring locking connectors. It features a water-resistant construction with an IP66 rating.
Key Features of the HUBBELL 30A Watertight Locking Connector:
- NEMA Enclosure Rating: Rated Type 4, 4X, and 12 for protection against water ingress and dust.
- IP Rating: IP66 rated for resistance to strong jets of water.
- Cord Size Compatibility: Accepts cord diameters from 0.350 in to 1.150 in
- maximum wire size is 8 AWG, minimum is 16 AWG.
- Material Construction: Housing made from Valox
- contact material is brass
- retainer material is clear polycarbonate
- screws are stainless steel.
- Operating Temperature Range: Rated for operation within a temperature range of -40°C to +75°C.
- Flammability Rating: UL94 V-0 rating on materials used.
- NEMA Configuration: L17-30R locking configuration with straight connection orientation and grounded design.
- Horsepower Rating: Rated up to 10 hp at specified voltage/current levels.
- Closure Cap Included: includes press-on cap
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.20
- Package Width: 3.20
- Package Height: 3.70
- Package Weight: 0.90
