Pin & Sleeve Receptacle, 30 A, - Phase, 3 Pole, NEMA 4X MPN:MB303W
Free Shipping
In Stock
Protect your electrical devices in demanding environments with the HUBBELL Back Box, a rugged and reliable solution for surface mounting. Compatible with Insulgrip Pin and Sleeve devices, this cast aluminum back box provides internal wiring space and provisions for connection to metallic conduit ground systems. Rated for 30 amps and 600V AC RMS, it meets impact resistance requirements and is NEMA 4X and IP67 rated for protection against water and corrosion. Ideal for use in harsh environments, such as industrial facilities, construction sites, and outdoor areas, this back box offers peace of mind and ensures reliable device operation.
Top product features:
- Rated for 30 amps
- Provides internal wiring space
- Meets impact resistance requirements of UL746C standards
Top product applications:
- Outdoor Lighting
- Industrial Control Panels
- Marine Electrical Systems

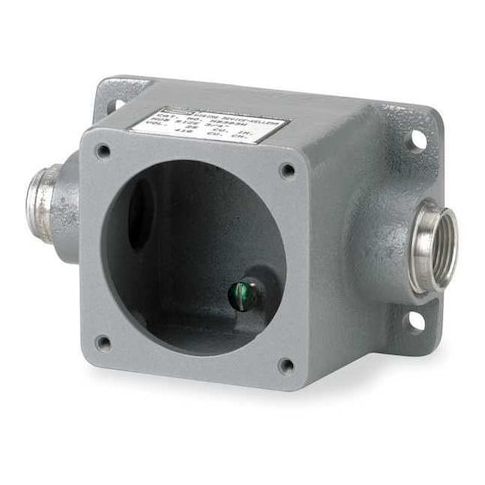

The HUBBELL Back Box, 30A, 3/4" Hub, Straight, Feed-Thru is a metallic back box compatible with Insulgrip Pin and Sleeve devices. Constructed from cast aluminum and suitable for surface mounting, it provides internal wiring space
- includes provisions for connection to metallic conduit ground systems. This accessory features a straight feed-through configuration and is rated for use in demanding environments.
Key Features of the HUBBELL Back Box, 30A:
- Current Rating: Rated for 30 amps
- Box Type: Feed-through design with straight angle
- Cable Entry: Through a 3/4 inch NPT hub (dead end type)
- Material: Cast aluminum construction
- metallic housing
- Mounting: Surface mount
- includes mounting screws
- Compatibility: Compatible with Insulgrip Pin and Sleeve devices
- accepts one device (1-gang)
- Performance Ratings: Rated for operation at up to 600V AC RMS
- meets impact resistance requirements of UL746C standards
- NEMA Enclosure Rating: Rated NEMA 4X for protection against water and corrosion
- IP Rating: IP67 rated enclosure
- Temperature Range: Operates from -40°C to 75°C continuous temperature without impact
- Flammability Rating: UL94-5VA and V-0 classification
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.60
- Package Width: 6.50
- Package Height: 5.00
- Package Weight: 1.90
