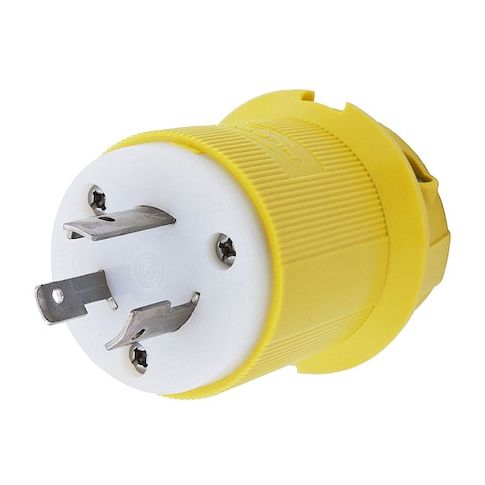

Locking Plug, L5-20P, 20 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Yellow MPN:HBL23CM11
Free Shipping
In Stock
The HUBBELL 20A Marine Twist-Lock Plug is a reliable and durable locking plug designed for use in industrial and marine environments. Its ribbed nylon housing provides a secure grip and resistance to impact, chemicals, and corrosion. With a current rating of 20 amps and a voltage rating of 125V AC, this plug is suitable for single-phase, grounded operation. It accommodates cord sizes from 0.360 to 0.930 inches and supports #16 AWG to #8 AWG stranded copper wire via screw terminals. Ideal for use in harsh conditions, this plug is perfect for applications such as marine equipment, heavy machinery, and construction sites.
Top product features:
- Ribbed nylon housing enhances grip, impact resistance, and chemical resistance.
- Accepts cable diameters from 0.360 in to 0.930 in to accommodate various cord sizes.
- Nickel-plated brass blades support consistent conductivity for reliable electrical connections.
Top product applications:
- Industrial Environments
- Marine Environments
- Outdoor Events
The HUBBELL 20A Marine Twist-Lock Plug (L5-20P) is a locking plug suitable for use in industrial and marine environments. It features a ribbed nylon housing for enhanced grip, impact resistance, and chemical resistance. The plug accommodates cord sizes from 0.360 to 0.930 inches and uses nickel-plated brass blades for reliable electrical connections at 125V AC with a current rating of 20 amps.
Key Features of the HUBBELL - 20A Marine Twist-Lock Plug L5-20P:
- Housing Material: Ribbed nylon housing
- Cord Range: Accepts cable diameters from 0.360 in to 0.930 in
- compatible with listed portable cords.
- Blade Material: Nickel-plated brass blades support consistent conductivity.
- Cord Grip Design: Intended to reduce strain on terminations during use.
- Integral Dust Shield: Helps prevent dust or contaminants from entering the wiring chamber.
- NEMA Configuration: L5-20P
- rated for single-phase, grounded operation at 125V AC/20A.
- Wire Size Compatibility: Supports #16 AWG to #8 AWG stranded copper wire via screw terminals.
- Resistance Properties: Construction includes corrosion-resistant, impact-resistant, and chemical-resistant materials .
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.50
- Package Width: 5.30
- Package Height: 2.50
- Package Weight: 0.30
