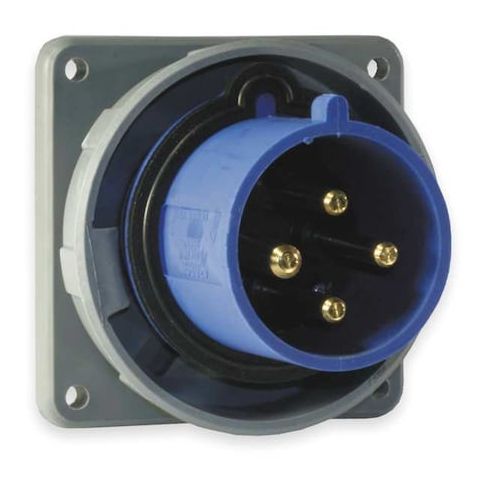

Watertight Pin & Sleeve Inlet, 30 A, 250V AC, Three Phase, 3 Pole, IEC Grounding, Blue MPN:HBL430B9W

• The HUBBELL IEC Pin and Sleeve Inlet is an electrical inlet rated for 30A and 250V AC, suitable for use in industrial settings. Rated for 30A and 250V AC, this three-phase device features a non-metallic housing constructed from Zytel 101 nylon and meets IEC 60309 standards. The unit includes pressure terminal screws for wire connections and supports wire sizes from #12 AWG to #8 AWG. It is compatible with the HBL Heavy Duty series and provides moisture resistance IP67 rated enclosure provides moisture resistance as specified by the standard.





  Key Features of the HUBBELL IEC Pin and Sleeve Inlet:





  • Current/Voltage Rating: 30 A, 250V AC, three-phase


  • IP67 rated enclosure
  • see specifications for details on moisture ingress protection


  • Body Material: Zytel 101 nylon with insulated thermoplastic body


  • Contact Carrier: Thermoset polyester (see operating temperature range)


  • Cord Size Compatibility: Accepts #12 to #8 AWG wires via screw terminals


  • Flanged Design: Facilitates panel mounting (flange diameter: 2.72 in)


  • Operating Temperature Range: -40°C to +75°C continuous use


  • Grounding Style: IEC grounding
  • shrouded design per IEC grounding style enhances connection integrity


  • Screw Material: Corrosion-resistant 300 stainless steel hardware
