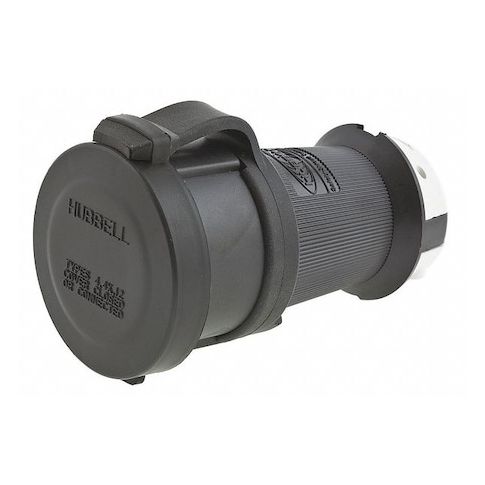

Watertight Locking Connector, L5-20R, 20 A, 125V AC, Single Phase, 2 Pole, Screw Terminals MPN:HBL2313SW
Free Shipping
In Stock
The HUBBELL 20A Watertight Twist-Lock Connector is a rugged and reliable solution for industrial and commercial electrical applications. Rated for 125V AC and 20 amps, this two-pole, three-wire connector features a thermoplastic housing and press-on closure cap to maintain a watertight seal. With a NEMA Enclosure Rating of Type 4, 4X, and 12, this connector provides protection against moisture and dust ingress, making it ideal for use in harsh environments. Suitable for applications such as outdoor electrical installations, construction sites, and industrial equipment, this connector offers durability, reliability, and ease of use.
Top product features:
- Operates between -40°C to +75°C with a temperature rise rating of up to 30°C.
- Accepts cord diameters from 0.36 in to 0.93 in and accommodates wire sizes from 16 AWG to 8 AWG.
- Features a two-pole, three-wire configuration rated for 125V AC and 20 amps.
Top product applications:
- Industrial Electrical Panels
- Commercial Construction Sites
- Marine Applications
The HUBBELL 20A Watertight Twist-Lock Connector (L5-20R) is a shrouded locking connector rated for use in industrial and commercial electrical applications. It features a two-pole, three-wire configuration rated for 125V AC and 20 amps. The device includes a thermoplastic housing
- see specifications for material properties, as well as a press-on closure cap to maintain its watertight seal when not in use.
Key Features of the HUBBELL 20A Watertight Twist-Lock Connector:
- NEMA Enclosure Rating: Rated Type 4, 4X, and 12
- IP66 rating per specification for protection against moisture and dust ingress.
- Material Construction: Housing made from Valox (impact modified PBT)
- retainer is clear polycarbonate
- screw material is stainless steel
- contact material is brass.
- Cord Accommodation: Accepts cord diameters from 0.36 in to 0.93 in
- maximum wire size of 8 AWG and minimum wire size of 16 AWG.
- Temperature Range: Operates between -40°C to +75°C with a temperature rise rating of up to 30°C.
- Flammability Rating: UL94 V-0 flammability classification on insulation materials.
- Electrical Ratings: Dielectric strength up to 2000V
- horsepower rating at 1 hp
- single phase operation with grounded design.
- Connection Details: Standard wiring style using screw terminals with straight connection orientation
- NEMA L5-20R receptacle configuration.
- Resistance Properties: Impact resistance, moisture resistance, and watertight properties per manufacturer’s specifications
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.20
- Package Width: 3.20
- Package Height: 3.40
- Package Weight: 0.60
