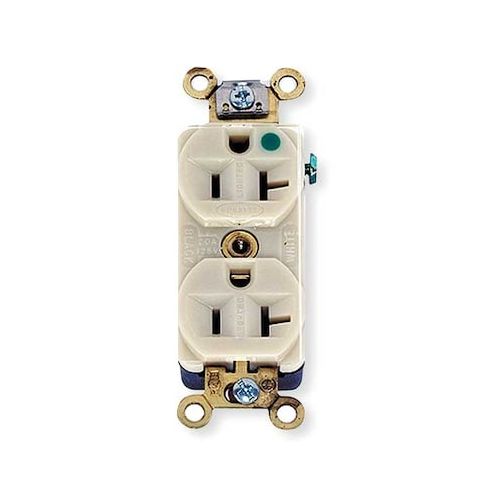

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:HBL8300ILI
Free Shipping
In Stock
The HUBBELL 20A Duplex Receptacle is a heavy-duty, hospital-grade outlet suitable for high-traffic areas requiring extra reliability. Its compact design and impact-resistant face make it perfect for use in hospitals, clinics, and commercial settings. This receptacle supports both back and side wiring methods and accommodates #12 to #10 AWG copper wire. Its four-point grounding system and dielectric strength ensure safe and reliable operation. Suitable for use in environments with high electrical demands, this receptacle is certified to various industry standards, including CSA and UL, making it a reliable choice for applications where safety and performance are paramount.
Top product features:
- Supports both back and side wiring methods using screw terminals.
- Accommodates #12 to #10 AWG copper wire.
- Includes grounding provisions.
Top product applications:
- Residential Electrical Outlets
- Commercial Electrical Outlets
- Hospital and Healthcare Facilities Electrical Outlets
The HUBBELL 20A Duplex Receptacle 125VAC 5-20R IV is a traditional duplex straight blade receptacle suitable for use in environments requiring extra heavy duty and hospital grade receptacles. This device features a compact design with an impact-resistant finder groove face and is rated for operation in specified environments as outlined by manufacturer specifications. It supports both back and side wiring methods using screw terminals, accommodates #12 to #10 AWG copper wire, and includes grounding provisions.
Key Features of the HUBBELL 20A Duplex Receptacle:
- Amperage/Voltage: Rated for 20 A at 125 VAC
- NEMA Configuration: 5-20R (2-pole, 3-wire grounded)
- Contact Material: Nickel-plated brass contacts
- see manufacturer data for performance characteristics
- Face Design: Polycarbonate housing with finder groove face
- includes two LED indicators on the face
- Wiring Options: Back and side wired screw terminals accept #12–#10 AWG stranded or solid copper wire
- Grounding System: Four-point grounding system designed to maintain ground continuity
- Dielectric Strength: Withstands minimum of 2,000V dielectric voltage
- Operating Temperature Range: -40°C to +75°C (without impact)
- Flammability Rating: UL94 V-2 rated materials used throughout construction
- Mounting Type: Flush mount
- includes mounting hardware and grounding clip
- Certifications & Standards: CSA Certified C22.2 No.42 File 285, Federal Specification W-C-596, NEMA WD-6 compliant, UL Listed to UL498 File E2186
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.30
- Package Width: 1.80
- Package Height: 1.50
- Package Weight: 0.20
