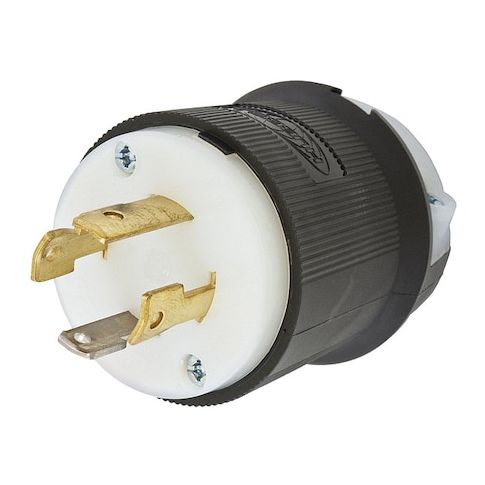

Locking Plug, L14-30P, 30 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals, Black, White MPN:HBL2711

• The HUBBELL 30A Twist-Lock Plug L14-30P is a locking plug intended for use in industrial settings, rated for 30 amps and 125/250V AC. It features a three-pole, four-wire configuration with screw terminal connections and accommodates cord sizes from 0.350 to 1.150 inches in diameter. The plug incorporates a cord grip design intended to reduce strain on terminations, as well as includes a dust shield designed to limit entry of contaminants into the wiring chamber.





  Key Features of the HUBBELL - 30A Twist-Lock Plug L14-30P:





  • Amperage & Voltage: Rated for 30 A and suitable for use with 125/250V AC circuits


  • Cord Accommodation: Accepts all listed portable cords within a range of 0.350"–1.150" diameter (#16 AWG – #8 AWG stranded copper wire)


  • Wire Connection Type: Screw terminals with clear, funnel-shaped entry for ease of termination


  • Material & Construction: Nylon housing
  • brass blades
  • constructed with materials rated for resistance to certain chemicals and impacts


  • NEMA Configuration: L14-30P (3 pole, 4 wire), polarized and grounded


  • Operating Temperature Range: Maximum continuous temperature of 75°C
  • minimum -40°C without impact


  • Standards Compliance: Certified to CSA C22.2 No.42, UL Listed (UL498), Federal Specification W-C-596


  • Ingress Protection: IP20 rating—intended for indoor dry locations unless protected by additional means
