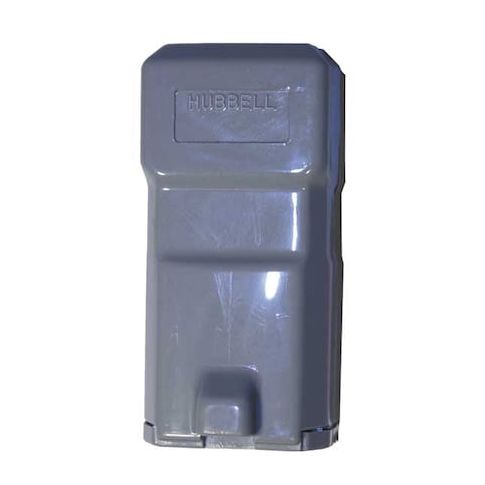

Straight Blade Connector, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Screw Terminals, Gray MPN:HBL5969VGY

• The HUBBELL 5-15R Straight Blade Connector is an electrical connector intended for use in industrial and commercial settings. It features a hinged, one-piece thermoplastic elastomer body to facilitate assembly and maintenance. This connector accommodates #18 AWG to #12 AWG stranded copper wire and supports cord diameters from 0.220" to 0.660". Rated for 15A at 125V AC, it includes screw terminal wiring for grounded connections.





  Key Features of the HUBBELL 5-15R Straight Blade Connector:





  • Amperage/Voltage Rating: Rated for 15 A, 125 V AC operation


  • NEMA Configuration: NEMA 5-15R receptacle configuration


  • Wire Accommodation: Accepts #18 AWG to #12 AWG stranded copper wire


  • Cord Range: Suitable for cords with diameters between 0.220" and 0.660"


  • Body Design: Hinged one-piece construction facilitates assembly
  • captive screws are included for convenience during wiring


  • Cord Grips: Offsetting cord grips are used on individual conductors


  • Material Construction: Thermoplastic elastomer housing with brass contacts
  • nylon components included


  • Grounding Style: Grounded design enhances connection reliability


  • Operating Temperature Range: -40°C (without impact) up to +75°C continuous use


  • Standards Compliance: CSA Certified, UL Listed, NEMA WD-6 compliant
