Locking Connector, Non-NEMA, 10/20 A, 250/600V AC, Three Phase, 4 Pole, Screw Terminals MPN:HBL3523C
Free Shipping
In Stock

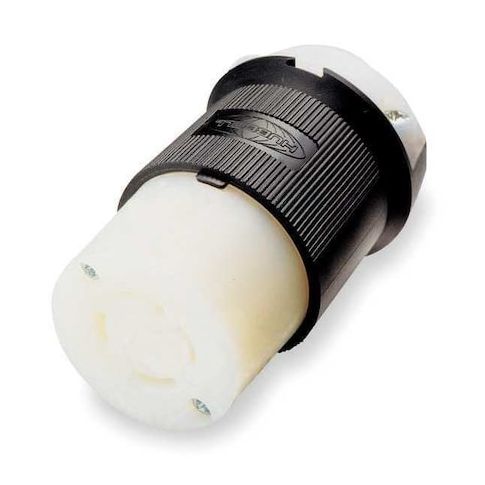

The HUBBELL 20/10A Twist-Lock Connector is a reliable and versatile locking connector designed for use in a variety of applications, including industrial, commercial, and residential settings. With a rating of 20/10 A current at up to 250/600V AC, it can handle high electrical demands while protecting against strain on wire terminations. Suitable for use with stranded copper wire, this connector features a ribbed nylon housing and screw terminals, ensuring secure and durable connections. Its compact design and wide temperature range make it an ideal choice for use in harsh environments, including those with high temperatures or exposure to chemicals.
Top product features:
- Ribbed nylon housing provides resistance to impact and chemicals.
- Cord grip design helps protect wire terminations from strain.
- Meets HB or better per UL94 or CSA standards for flammability.
Top product applications:
- Industrial Control Panels
- Marine Electrical Systems
- Construction Site Power Distribution
The HUBBELL 20/10A Twist-Lock Connector is a locking connector rated for use in specified environments. It features a ribbed nylon housing
- see specifications for material properties and resistance to impact and chemicals, as well as a cord grip design intended to support wire terminations that helps protect wire terminations from strain. The connector accommodates four poles and five wires, operates at 250/600V AC, and is suitable for use with stranded copper wire ranging from #16 AWG to #8 AWG.
Key Features of the HUBBELL 20/10A Twist-Lock Connector:
- Amperage Rating: Rated for 20/10 A current at up to 250/600V AC.
- Cable Range: Accepts cable diameters from 0.350" to 1.150".
- Body Material: Constructed with natural white nylon housing (omit claim).
- Contact Material: Brass contacts used for conductivity.
- Wire Connection Type: Screw terminals compatible with #16 AWG – #8 AWG stranded copper wire only.
- Temperature Rating: Operates continuously between -40°C (without impact) up to +75°C maximum temperature.
- Flame Resistance: Meets HB or better per UL94 or CSA standards for flammability.
- Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, and listed to UL 498 requirements.
- Cord Grip Design: Includes integral dust shield, funnel-shaped entry, and cord-mounted configuration as described in product specifications.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.40
- Package Width: 2.40
- Package Height: 3.90
- Package Weight: 0.44
