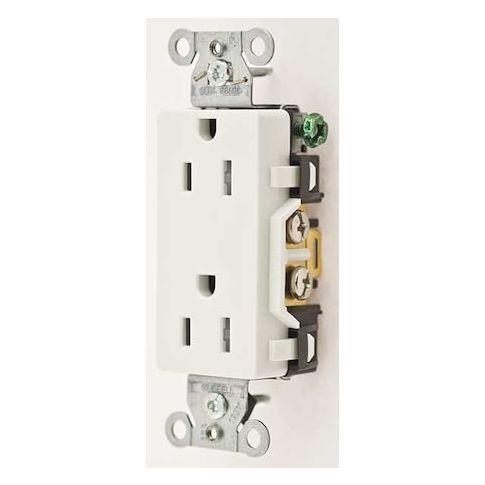

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:DR15WHITR
Free Shipping
In Stock
This HUBBELL 15A Duplex Decorator Receptacle is a reliable and tamper-resistant electrical outlet designed for commercial and industrial indoor applications. Its smooth face and standard NEMA 5-15R plug compatibility make it a versatile choice for a variety of uses. Suitable for single-phase applications, it supports up to 15 amps at 125 volts AC. The receptacle's durable construction and triple wipe brass contacts ensure reliable connectivity, while its flush mount design and mounting hardware simplify installation. Ideal for use in offices, restaurants, and retail spaces, this receptacle helps ensure safe and efficient electrical distribution.
Top product features:
- Tamper-resistant shutters are built-in to reduce the risk of foreign object insertion.
- Accepts standard NEMA 5-15R plugs for up to 15 amps at 125 volts AC.
- Supports both back and side wiring with #14–#10 AWG copper conductors only.
Top product applications:
- Commercial indoor applications
- Industrial indoor applications
- Single-phase applications
The HUBBELL 15A Duplex Decorator Receptacle 125VAC 5-15R WH is a tamper-resistant electrical outlet intended for commercial and industrial indoor applications. It features a decorator-style smooth face and accepts standard NEMA 5-15R plugs, supporting up to 15 amps at 125 volts AC. The receptacle is constructed with nylon housing and includes triple wipe brass contacts for reliable connectivity.
Key Features of the HUBBELL 15A Duplex Decorator Receptacle:
- Tamper Resistant: Built-in shutters are intended to reduce the risk of foreign object insertion.
- Electrical Rating: Rated for 15A, 125V AC
- suitable for single-phase applications.
- NEMA Configuration: Accepts standard NEMA 5-15R plugs (2-pole, 3-wire grounding).
- Material Construction: Nylon base and housing with brass power contacts
- stainless steel auto ground clip.
- Mounting Type: Flush mount design
- includes mounting hardware and grounding staple.
- Wiring Method: Supports both back and side wiring with #14–#10 AWG copper conductors only.
- Certification & Standards: UL Listed, CSA Certified, meets NEMA WD-6 requirements, listed to UL Standard 498.
- Operating Temperature Range: -40°F to +167°F (-40°C to +75°C continuous operation).
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.20
- Package Width: 1.60
- Package Height: 1.20
- Package Weight: 0.17
