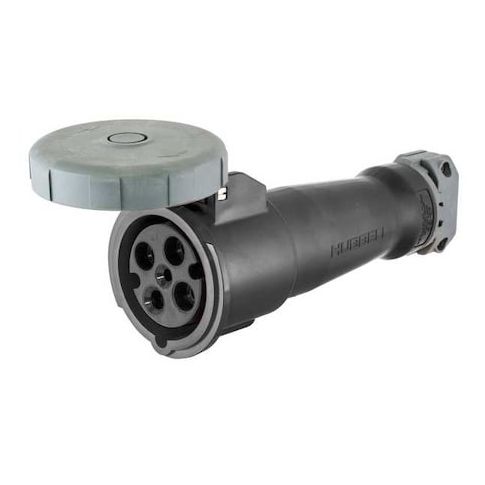

Watertight Pin & Sleeve Connector, 20 A, 600V AC, Three Phase, 3 Pole, IEC Grounding, Black, NEMA 4X MPN:HBL420C5W

• The HUBBELL IEC Pin and Sleeve Connector is an electrical connector rated for 20A and up to 600V AC, suitable for use in industrial environments. Rated for 20A and up to 600V AC, this connector features a rugged, insulated non-metallic housing made from Zytel 801 nylon with a PBT body. It accommodates #14 AWG to #10 AWG conductors using pressure terminal screws and supports three-phase power with four-wire grounding. The unit is cord mounted, shrouded, and equipped with color-coded housings for voltage identification.





  Key Features of the HUBBELL IEC Pin and Sleeve Connector:





  • Current/Voltage Rating: 20A, 600V AC
  • suitable for three-phase applications


  • IP68/IP69K rating per IEC 60309-1 (moisture resistance)


  • Material: Constructed with materials specified as Zytel 801 nylon and PBT body


  • Cord Grip: External cord grip intended to provide strain relief on conductors


  • Operating Temperature Range: -40°C to +75°C (as specified by manufacturer)


  • Wire Accommodation: Compatible with conductor sizes from #14 AWG to #10 AWG via screw terminals


  • Horsepower Rating: maximum of 10 hp
  • also listed at 7½ hp


  • Standards Compliance: CSA Certified LR280C
  • UL Classified to IEC 60309-1/-2
  • UL E146033


  • Circuit Configuration: Four-wire grounding, three poles
  • grounded per IEC conventions


  • Features: Color coded housings for easy identification, self-closing gasketed cover, impact resistant construction
