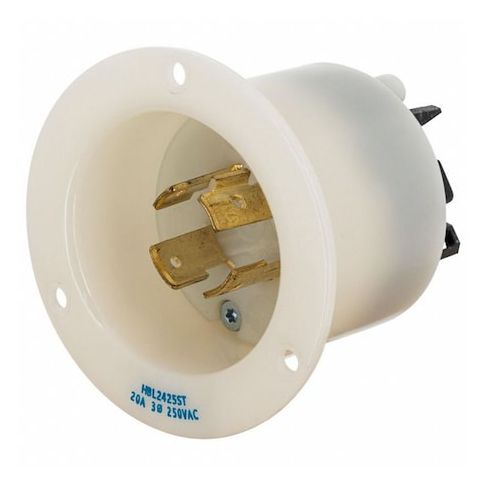

Locking Receptacle, 20 A, 250V AC, Three Phase, 3 Pole, Flush Mount, Spring Clamp Terminals, White MPN:HBL2425ST
Out Of Stock
The HUBBELL Locking Receptacle is a reliable and efficient solution for indoor electrical applications. Suitable for three-phase, 20A, 250V AC systems, this receptacle features spring clamp terminals for fast and tool-free wire termination. Its flanged design and grounded three-pole configuration ensure safe and secure connections. Ideal for use in commercial and industrial settings, this receptacle is rated for applications up to 3 hp and meets CSA and UL standards for safety. With its compact design and easy installation, the HUBBELL Locking Receptacle is perfect for use in offices, warehouses, and other high-traffic areas where reliability and efficiency are paramount.
Top product features:
- Three-phase, 20A, 250V AC electrical receptacle suitable for indoor use.
- Features a flanged design with spring clamp terminals that allow for faster wire termination without the need for screwdrivers or torque wrenches.
- Supports backwired connections and accommodates copper wires ranging from 14 AWG to 8 AWG.
Top product applications:
- Commercial Lighting
- Industrial Power Distribution
- Heavy-Duty Equipment
The HUBBELL Locking Receptacle is a three-phase, 20A, 250V AC electrical receptacle suitable for indoor use. It features a flanged design with spring clamp terminals that allow for faster wire termination without the need for screwdrivers or torque wrenches. The receptacle supports backwired connections and accommodates copper wires ranging from 14 AWG to 8 AWG.
Key Features of the HUBBELL Locking Receptacle:
- NEMA Configuration: L15-20R (compatible with L15-20P plugs)
- Current/Voltage Rating: Rated for 20 A at 250V AC
- Phase/Poles/Wires: Three-phase
- 3 poles, 3 wires
- grounded
- Wire Connection Type: Spring clamp terminals enable wire termination without screwdrivers or torque wrenches
- Copper Wire Range Included: Accepts copper wire sizes from 14 AWG to 8 AWG
- Temperature Range: Operates between -40°C and +75°C maximum temperature
- Housing Material & Finish: Nylon housing in natural finish
- UL94 HB flammability rating
- Horsepower Rating: Rated for applications up to 3 hp
- Standards Compliance: Meets CSA C22.2 No.42, Federal Specification W-C-596, and UL498 standards
- IP Rating: IP20 – suitable for indoor locations only
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.40
- Package Width: 3.20
- Package Height: 3.30
- Package Weight: 0.31
