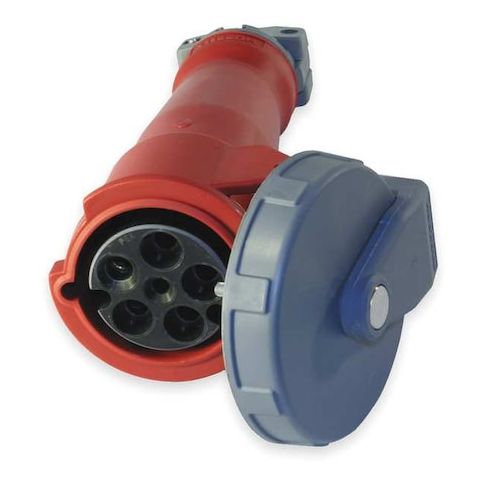

Watertight Pin & Sleeve Connector, 60 A, 277/480V AC, Three Phase, 4 Pole, IEC Grounding, Red MPN:HBL560C7W
Free Shipping
In Stock
The HUBBELL IEC Pin and Sleeve Connector is a reliable and versatile solution for industrial applications requiring a watertight connection. Rated for 60A and 277/480V AC, this connector is ideal for use in harsh environments, such as manufacturing facilities, construction sites, and outdoor installations. Its insulated non-metallic housing and self-closing gasketed cover ensure a secure and weather-resistant connection, while its screw terminals provide reliable wire connection. Suitable for three-phase wiring configurations with five-wire grounding, this connector is perfect for applications where safety and reliability are paramount, including electrical panels, equipment connections, and generator installations.
Top product features:
- Accommodates #8 AWG to #2 AWG conductors with pressure terminal screws for secure connectivity
- Features a self-closing gasketed cover for environmental protection
- Supports three-phase (3Y) wiring configurations with five-wire grounding
Top product applications:
- Industrial Control Panel Wiring
- Three-phase power distribution systems
- Heavy-duty electrical equipment connections
The HUBBELL IEC Pin and Sleeve Connector is a rated for 60A and 277/480V AC applications in industrial environments. It features an insulated non-metallic housing made from Zytel 801 nylon and includes a self-closing gasketed cover. It accommodates #8 AWG to #2 AWG conductors with pressure terminal screws for secure connectivity, supports three-phase (3Y) wiring configurations with five-wire grounding.
Key Features of the HUBBELL IEC Pin and Sleeve Connector:
- Current/Voltage Rating: Rated for 60 amps at 277/480V AC
- Body Material: Housing made from Zytel 801 nylon
- Environmental Protection: Meets IP68/IP69K standards
- Cable Compatibility: Accepts cable diameters from 0.5 in to 1.45 in
- conductor range #8 AWG to #2 AWG
- Connection Type: Screw terminals provide reliable wire connection
- Features: Color-coded housing for identification, self-closing gasketed cover, shrouded contacts, spring-loaded cap
- Standards Compliance: CSA Certified LR280C
- UL Classified to IEC 60309-1/-2
- UL E146033 listed
- Temperature Range: Operates continuously from -40°C up to +75°C without impact (-25°C with impact)
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.80
- Package Width: 5.80
- Package Height: 4.90
- Package Weight: 3.00
