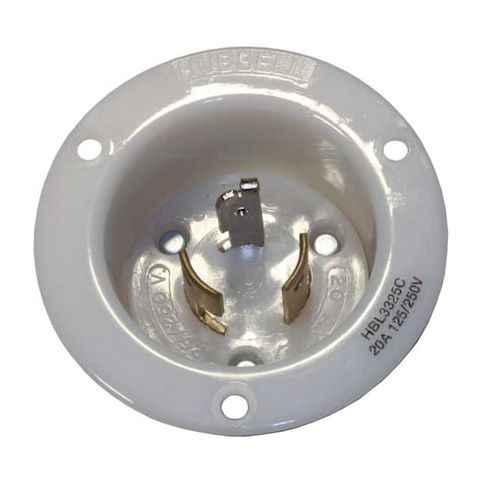

Flanged Locking Inlet, Non-NEMA, 20 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, White MPN:HBL3325C
Free Shipping
In Stock
Protect your equipment and ensure safe power distribution with the HUBBELL 20A Flanged Twist-Lock Inlet. This rugged, flush-mount inlet features a twist-lock mechanism with three poles and wires, rated for 125/250V AC and 20 amps. Suitable for demanding environments, it withstands temperatures from -40°C to +75°C and withstands a minimum of 2,000V dielectric strength. Ideal for use in industrial, commercial, and construction applications, this inlet provides reliable power distribution for equipment, tools, and machinery. Its easy backwired terminations and included mounting screws make installation straightforward, ensuring a secure and efficient power supply.
Top product features:
- The inlet has a twist-lock mechanism with 3 poles and 3 wires, rated for 125/250V AC and up to 20 amps.
- The inlet is constructed from thermoplastic materials and includes backwired terminations for straightforward installation.
- The inlet is designed for flush mount installation with mounting screws included.
Top product applications:
- Industrial Control Panels
- Commercial Office Buildings
- Medical Facilities
The HUBBELL 20A Flanged Twist-Lock Inlet is a flush-mount, locking inlet with flanged, flush-mount design suitable for demanding environments. It features a twist-lock mechanism with 3 poles and 3 wires, rated for 125/250V AC and up to 20 amps. The inlet is constructed from thermoplastic materials and includes backwired terminations for straightforward installation.
Key Features of the HUBBELL - 20A Flanged Twist-Lock Inlet:
- Amperage/Voltage: Rated for 20 A at 125/250V AC single phase
- Construction: Nylon housing with natural white nylon flange
- Mounting: Flush mount design
- mounting screws included
- Terminals: Backwired screw terminals accept #16 AWG to #10 AWG copper wire
- accepts slotted, Phillips, and Robertson drivers
- Configuration: Non-NEMA twist-lock with three blades (3P), three wires (3W)
- Standards: Certified to CSA C22.2 No.42, Federal Specification W-C-596, UL Listed to UL498
- Operating Temperature Range: -40°C to +75°C (without impact)
- Dielectric Strength & Insulation: Withstands minimum of 2,000V
- insulated body construction
- NEMA Enclosure Rating/IP Rating: NEMA Type 12 & 4X when properly installed
- IP20 suitability for indoor dry locations unless protected by additional means
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.90
- Package Width: 2.90
- Package Height: 2.00
- Package Weight: 0.40
