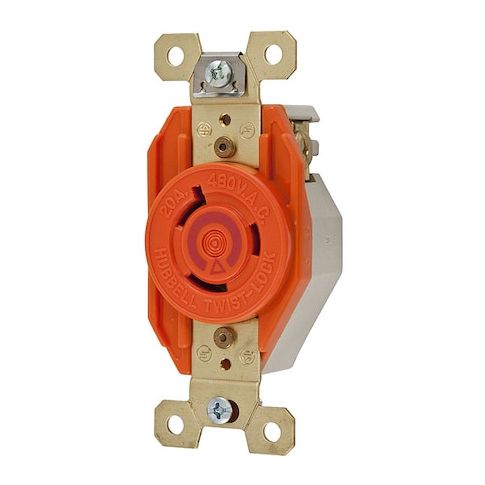

Locking Receptacle, L8-20R, 20 A, 480V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals MPN:IG2340
Free Shipping
In Stock
The HUBBELL 20A Isolated Ground Locking Receptacle is a reliable and versatile industrial-grade device designed for use in electrical applications where a secure and isolated ground connection is required. This single flush receptacle offers a twist-lock mechanism for maintaining connection integrity and accommodates two poles and three wires, supporting up to 480V AC. Ideal for use in harsh environments, it provides a high-impact nylon face and housing, brass contacts, and a UL94 V-2 flammability rating, making it suitable for a range of applications, including industrial settings, manufacturing facilities, and construction sites.
Top product features:
- Amperage/Voltage Rating: Rated for 20 A at 480V AC with a maximum horsepower rating of 5 hp
- locking type with polarized design
- Isolated Ground: Insulation barrier isolates ground contact from mounting strap
Top product applications:
- Industrial Control Panels
- Locking Receptacles for Hazardous Locations
- Electrical Enclosures and Cabinets
The HUBBELL 20A Isolated Ground Locking Receptacle is an Industrial-grade device rated for use in specified electrical applications. This single flush receptacle features an isolated ground with insulation barrier construction separating ground contacts from the mounting strap and conventional grounding system. It accommodates two poles and three wires, supports up to 480V AC, and utilizes a twist-lock mechanism to maintain connection integrity.
Key Features of the HUBBELL 20A Isolated Ground Locking Receptacle:
- Amperage/Voltage Rating: Rated for 20 A at 480V AC with a maximum horsepower rating of 5 hp
- NEMA Configuration: L8-20R
- locking type with polarized design
- Isolated Ground: Insulation barrier isolates ground contact from mounting strap
- green grounding screw connects directly to grounding contacts
- Material Construction: High-impact nylon face and housing
- brass contacts and spring material are used
- see specifications for details on materials used
- Wiring Compatibility: Accepts #16 - #8 AWG solid or stranded copper wire via screw terminals
- suitable for both back and side wiring
- Mounting Type: Flush mount with included screw hardware (non-flanged)
- Operating Temperature Range: Maximum continuous 75°C (167°F), minimum -40°C (-40°F) without impact
- Flammability & Protection Ratings: UL94 V-2 flammability rating
- IP20 rated for indoor dry locations unless otherwise protected
- Certifications & Standards: Listed to UL 498, CSA C22.2 No.42, Federal Specification W-C-596
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.80
- Package Width: 4.40
- Package Height: 3.40
- Package Weight: 2.85
