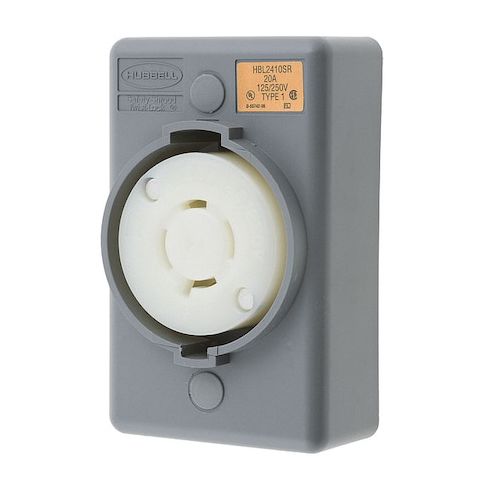

Locking Receptacle, L14-20R, 20 A, 125/250V AC, Single Phase, 3 Pole, Surface Mount, Gray MPN:HBL2410SR
Free Shipping
In Stock
The HUBBELL 20A Twist-Lock Receptacle L14-20R is a reliable and secure locking receptacle designed for industrial settings, ideal for applications where equipment must be safely connected and disconnected. Its 3-pole, 4-wire grounded design and twist-lock mechanism ensure a secure connection, protecting against electrical shock and equipment damage. With a wide operating temperature range and corrosion-resistant materials, this receptacle can withstand harsh environments, making it suitable for use in manufacturing facilities, construction sites, and other high-demand areas where safety and reliability are paramount. Its compact design and easy installation also make it a convenient choice for many industrial applications.
Top product features:
- Twist-lock mechanism provides secure and easy connection/disconnection of devices.
- Accepts #16 AWG – #8 AWG solid or stranded copper wire via screw terminals for flexible wiring options.
- Operates at 125/250V AC, 20 amps for reliable power distribution in industrial settings.
Top product applications:
- Industrial Electrical Panels
- Heavy-Duty Machinery
- Construction Sites
The HUBBELL 20A Twist-Lock Receptacle (L14-20R) is a locking receptacle intended for use in industrial settings, rated for single-phase operation at 125/250V AC, 20 amps. It features a twist-lock mechanism.
Key Features of the HUBBELL 20A Twist-Lock Receptacle L14-20R:
- NEMA Configuration: L14-20R, 3-pole, 4-wire grounded design
- Current/Voltage Rating: Rated for 20 A at 125/250V AC
- Material Construction: Engineered thermoplastic housing (Valox), nylon components
- made with materials described as corrosion- and impact-resistant by the manufacturer
- Operating Temperature Range: -40°F to 167°F (-40°C to +75°C continuous)
- Wire Compatibility: Accepts #16 AWG – #8 AWG solid or stranded copper wire via screw terminals
- Mounting Type: Surface mount
- non-flanged design
- Contact/Spring Material: Brass contacts and .031" brass spring material
- Flammability Rating: UL94 V2 or better per UL94/CSA standards
- NEMA Enclosure/IP Rating: NEMA Type 1 enclosure
- IP20 rated for indoor use only
- Terminal Identification: Terminals marked according to UL498 (X, Y, Z, White, Green)
- Coding & Polarization: Color-coded voltage rating remains visible during operation
- polarized configuration
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.90
- Package Width: 3.10
- Package Height: 2.70
- Package Weight: 0.50
