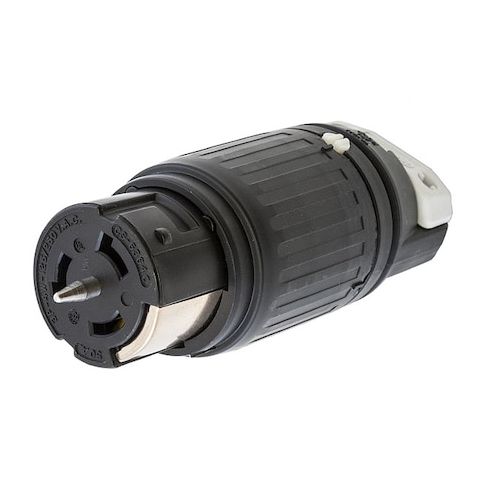

Locking Connector, Non-NEMA, 50 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals, Black, White MPN:CS6364C
Free Shipping
In Stock
The HUBBELL 50A Twist-Lock Connector is a reliable and durable solution for industrial and commercial electrical applications. Rated for 50 amps at 125/250V AC, it features a twist-lock mechanism with 3 poles and 4 wires, suitable for use with stranded copper wire from #10 AWG to #6 AWG. Its heavy-duty nylon body and thermoplastic polyester interior enhance durability, while the two-piece external cord clamp provides strain relief. Suitable for use in a variety of applications, including industrial equipment, commercial lighting, and power distribution systems, this connector offers a secure and reliable connection.
Top product features:
- Heavy-duty black nylon body with insulated housing enhances durability.
- Thermoplastic polyester interior provides strain relief by gripping both conductors and jacket.
- Screw terminals are used for conductor attachment, clamping conductors securely.
Top product applications:
- Industrial Electrical Applications
- Commercial Electrical Applications
- Heavy-Duty Power Distribution Systems
The HUBBELL 50A Twist-Lock Connector is a locking connector rated for use in industrial and commercial electrical applications. It features a twist-lock mechanism with 3 poles and 4 wires, rated for 50 amps at 125/250V AC. The connector is constructed with a nylon housing and thermoplastic polyester interior
- see specifications for material properties. Suitable for use with stranded copper wire ranging from #10 AWG to #6 AWG, it accommodates cable diameters between 0.83" and 1.25".
Key Features of the HUBBELL - 50A Twist-Lock Connector:
- Amperage/Voltage Rating: Rated for up to 50 A at 125/250V AC single phase.
- Construction: Heavy-duty black nylon body with insulated housing
- thermoplastic polyester interior enhances durability.
- Cable & Cord Range: Accepts cables from .830" to 1.250" diameter
- suitable for cord sizes from .750" to 1.125".
- Wire Compatibility: Designed for #10 AWG to #6 AWG stranded copper wire only.
- Connection Type: Screw terminals are used for conductor attachment
- box terminal is designed to clamp conductors securely.
- Strain Relief: Two-piece external cord clamp provides strain relief by gripping both conductors and jacket.
- Operating Temperature Range: Rated operating temperature range: -40°C (without impact) to +75°C.
- Standards Compliance: Certified to CSA C22.2 No.42
- listed to UL 498 standards.
- NEMA Configuration: Non-NEMA twist-lock design with grounded connection orientation (straight).
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 2.60
- Package Height: 7.30
- Package Weight: 1.00
