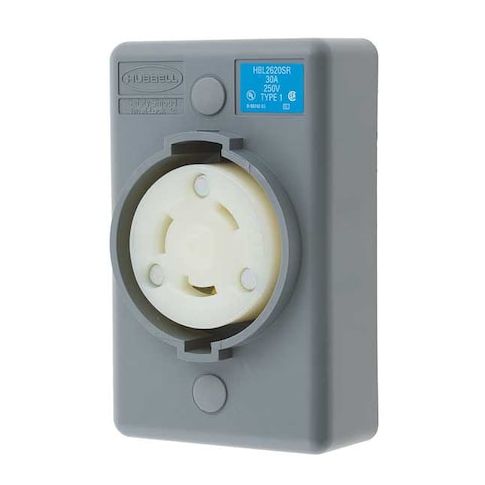

Locking Receptacle, L6-30R, 30 A, 250V AC, Single Phase, 2 Pole, Surface Mount, Screw Terminals MPN:HBL2620SR
Free Shipping
In Stock
The HUBBELL 30A Twist-Lock Receptacle L6-30R is a reliable and durable locking receptacle designed for indoor use in dry locations. Its twist-lock mechanism ensures a secure connection during operation, while the alignment arrows and lock/unlock symbols provide visual confirmation of proper connection. Constructed from corrosion-resistant impact modified PBT, this receptacle is ideal for applications that require high reliability and safety, such as in industrial settings, laboratories, and commercial facilities. With a rating of up to 2 hp, it can support a variety of equipment, making it a versatile and trustworthy solution for demanding electrical applications.
Top product features:
- Twist-lock mechanism intended to help maintain connection during operation.
- Alignment arrows with lock/unlock symbols for visual confirmation of proper connection.
- Impact modified PBT (Valox) housing is corrosion resistant.
Top product applications:
- Industrial Power Equipment
- Heavy Machinery
- Construction Sites
The HUBBELL 30A Twist-Lock Receptacle L6-30R is a locking receptacle rated for 30 amps and 250V AC. It features a twist-lock mechanism intended to help maintain connection during operation. The device includes alignment arrows with lock/unlock symbols for visual confirmation of proper connection, and catalog number plus voltage rating remain visible during operation. Its thermoplastic housing is constructed from impact modified PBT (Valox), rated as corrosion resistant
- intended for indoor use in dry locations.
Key Features of the HUBBELL 30A Twist-Lock Receptacle L6-30R:
- NEMA Configuration: L6-30R
- 2-pole, 3-wire
- single phase
- Current/Voltage Rating: Rated for 30 A at 250V AC
- Housing Material: Impact modified PBT (Valox), corrosion resistant
- Mounting Type: Surface mount
- non-flanged design
- Wire Connection Type: Screw terminals
- accepts wire sizes from #16 AWG to #8 AWG (#10 AWG standard)
- Operating Temperature Range: -40°F to 167°F (-40°C to +75°C continuous)
- Horsepower Rating: Rated up to 2 hp
- Flammability Rating: UL94 V-2 or better
- IP/NEMA Enclosure Ratings: IP20, NEMA type 1 (for indoor use only)
- Standards Compliance: CSA Certified C22.2 No.42, Federal Specification W-C-596, UL498 listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.90
- Package Width: 3.10
- Package Height: 2.90
- Package Weight: 0.45
