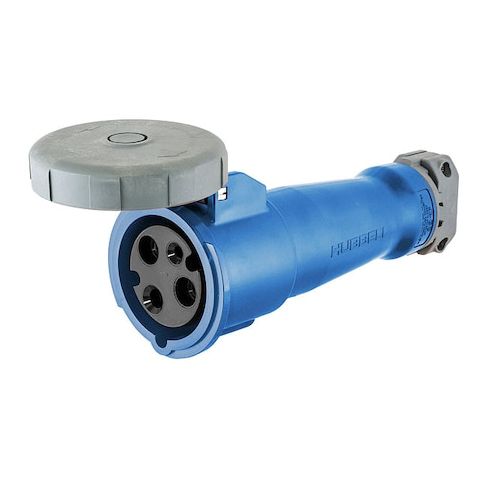

Watertight Pin & Sleeve Connector, 60 A, 250V AC, Single Phase, 2 Pole, IEC Grounding, Blue, NEMA 4X MPN:HBL360C6W

• The HUBBELL IEC Pin and Sleeve Connector is an electrical connector rated for 60A and 250V AC, intended for use in industrial environments. Rated for 60A and 250V AC, this connector features a rugged, insulated non-metallic housing made from Zytel 801 nylon and PBT, with housing materials selected to offer impact and moisture resistance. It accommodates conductor sizes from #8 AWG to #2 AWG with pressure terminal screws to facilitate wire connection. The unit meets CSA and UL standards (IEC 60309-1/2) and is suitable for applications requiring power connection in challenging environments.





  Key Features of the HUBBELL IEC Pin & Sleeve Connector:





  • Current/Voltage Rating: Rated for 60A at 250V AC single-phase operation


  • Ingress Protection: Rated IP68/IP69K per applicable standards
  • includes a gasketed cover that closes automatically


  • Material: Housing constructed from Zytel 801 nylon
  • insulated body contributes to product durability


  • Cord Grip: External cord grip designed to provide strain relief on conductors


  • Wire Accommodation: Accepts wire sizes from #8 AWG to #2 AWG
  • screw terminal connections


  • Temperature Range: Operates continuously between -40°C to +75°C (without impact)


  • Identification: Color-coded blue housing aids in voltage identification per IEC standards


  • Standards Compliance: CSA Certified LR280C, UL Classified to IEC 60309-1/2, UL E146033 listed


  • Design Attributes: Shrouded contacts, spring-loaded cap, grounded configuration (3-wire grounding), straight connection orientation
