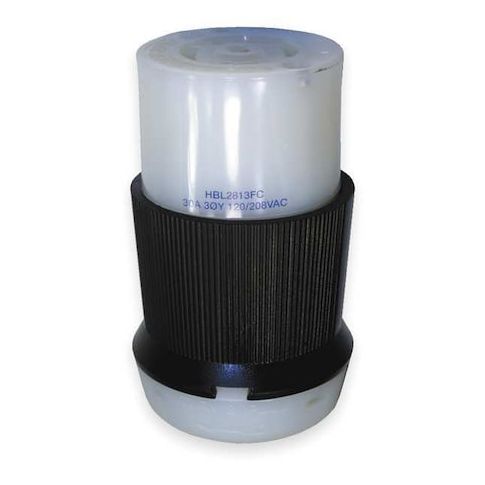

Locking Connector, L21-30R, 30 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Black, White MPN:HBL2813FC

• The HUBBELL 30A Locking Connector L21-30R is an industrial connector rated for use in specified environments. It features a ribbed nylon housing.





  Key Features of the HUBBELL 30A Locking Connector L21-30R:





  • Amperage/Voltage: Rated for 30 A and 120/208V AC, three-phase operation


  • NEMA Configuration: L21-30R (4-pole, 5-wire)


  • Wire Accommodation: Accepts #16 AWG to #8 AWG stranded copper wire
  • cord range of 0.350"–1.150"


  • Body Material: Nylon housing


  • Cord Grip Design: Protects terminations from excess strain


  • Operating Temperature Range: -40°C to +75°C (continuous duty without impact)


  • Flame Resistance: Meets HB or better per UL94/CSA standards


  • Listings & Standards: Certified to CSA C22.2 No.42, Fed.Spec. W-C-596
  • Listed to UL 498


  • Screw Terminals: Standard wiring style with straight connection orientation


  • IP Rating: IP20 – suitable for indoor dry locations unless protected by additional means




  The HUBBELL L21-30R includes a dust shield that helps protect the wiring chamber from contaminants during use.
