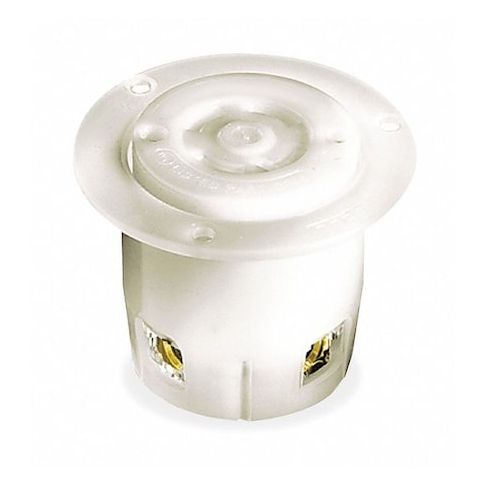

Flanged Locking Receptacle, L17-30R, 30 A, 600V AC, Three Phase, 3 Pole, Flush Mount, White MPN:HBL2746
Free Shipping
In Stock
The HUBBELL 30A Flanged Twist-Lock Receptacle is a reliable and secure solution for demanding industrial applications, rated for use in indoor dry locations. Its twist-lock mechanism ensures a secure connection, while its impact-resistant nylon housing and brass contacts provide durability. Suitable for three-phase, 600V AC applications, this receptacle is ideal for use in manufacturing facilities, data centers, and other high-demand environments. With its flush mount design and NEMA L17-30R configuration, it integrates seamlessly into panel systems. Certified to CSA and UL standards, this receptacle offers a safe and reliable connection for critical operations.
Top product features:
- Impact-resistant nylon housing and flange provide durability and resistance to impact.
- Brass contacts and springs provide durability and reliable connections.
- Accepts #16 AWG – #8 AWG solid or stranded copper wire via screw terminals for versatile wire accommodation.
Top product applications:
- Industrial Control Panels
- Industrial Power Distribution Systems
- Heavy-Duty Machinery
The HUBBELL 30A Flanged Twist-Lock Receptacle is a locking receptacle rated for use in indoor dry locations. This three-pole, four-wire device supports up to 600V AC and features a twist-lock mechanism.
Key Features of the HUBBELL 30A Flanged Twist-Lock Receptacle:
- Amperage/Voltage Rating: Rated for 30 A, 600V AC
- suitable for demanding industrial applications.
- NEMA Configuration: L17-30R with three poles and four wires
- polarized design.
- Material Construction: Impact-resistant nylon housing and flange
- brass contacts and springs provide durability.
- Mounting Type: Flush mount with included mounting screws
- round flanged shape allows straightforward panel integration.
- Wire Accommodation: Accepts #16 AWG – #8 AWG solid or stranded copper wire via screw terminals (backwired).
- Driver Compatibility: Terminal screws accept slotted, Phillips, or Robertson drivers for versatile installation options.
- Covers & Hardware: Includes cover and mounting hardware as standard components.
- Temperature Range & Ratings: Operates from -40°C to +75°C continuous temperature (without impact)
- maximum operating temperature of 167°F (75°C).
- Certifications & Standards: Certified to CSA C22.2 No.42, UL 498 listed, Federal Specification W-C-596 compliant
- NEMA Enclosure Type 1/IP20 rated for indoor use only.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 3.30
- Package Height: 2.80
- Package Weight: 0.11
