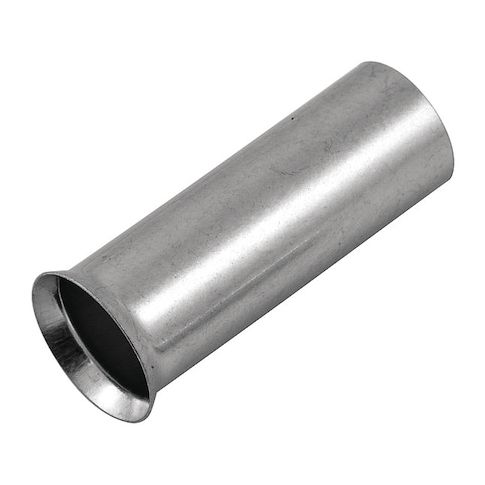

Ferrule, #2 AWG, 150 A, 250V DC; 600V AC MPN:HBL15F2

• The HUBBELL Single Pole Connector, Ferrule is a replacement ferrule for Series 15 single pole connectors.





  Key Features of the HUBBELL Single Pole Connector, Ferrule:





  • Amperage Rating: Rated for 150 A


  • Voltage Rating: Rated for operation at 600V AC/DC and 250V DC


  • Maximum Wire Size: Accepts #2 AWG conductors


  • Compatible Series: Designed for use with Series 15 single pole devices


  • NEMA Enclosure Ratings: Compatible with NEMA Types 3R, 4X, and 12 enclosures


  • Industry Standards: Meets National Electric Code (NEC), ANSI/NFPA 70
  • UL and cUL Listed


  • Mounting Style: Accessory type ferrule (#2 AWG)


  • Terminal Connection Type: includes a single pin terminal connection
  • compatible with devices compliant with UL1691 standards




  This ferrule features a single pin terminal connection and fits devices compliant with UL1691 standards. It is rated for up to 150 amps

• see product specifications to determine suitability for intended application.
