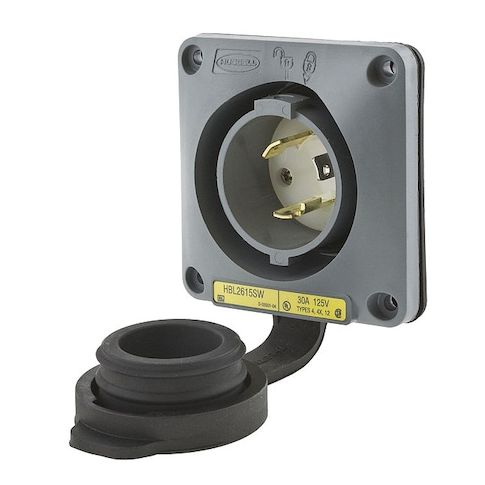

Watertight Flanged Locking Inlet, 30 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals MPN:HBL2615SW
Free Shipping
In Stock
The HUBBELL 30A Watertight Flanged Twist-Lock Inlet is a versatile and reliable electrical inlet designed for industrial settings. Suitable for flush mounting, it provides watertight connections and is rated for 30 amps and 125V AC, single phase. Its impact-resistant thermoplastic housing and alignment arrows ensure secure and easy installation. The device features a closure cap for protection when not in use and is CSA Type 4, 4X & Type 12 certified. Ideal for use in harsh environments, this inlet is perfect for outdoor applications, such as construction sites, oil rigs, or marine environments, where reliability and durability are paramount.
Top product features:
- The HUBBELL 30A Watertight Flanged Twist-Lock Inlet has a thermoplastic housing that is impact-resistant.
- The device features alignment arrows with lock/unlock symbols to facilitate secure connection and disconnection.
- The inlet has a closure cap to help protect the device when not in use.
Top product applications:
- Industrial settings requiring watertight connections
- Construction sites for outdoor power tools and equipment
- Marine environments for boats and ships
The HUBBELL 30A Watertight Flanged Twist-Lock Inlet is a locking electrical inlet rated for flush mounting in industrial settings requiring watertight connections. It features a thermoplastic housing that is impact-resistant and includes alignment arrows with lock/unlock symbols. The device comes with a closure cap to help protect the device when not in use, and catalog number as well as voltage rating markings are visible during operation.
Key Features of the HUBBELL 30A Watertight Flanged Twist-Lock Inlet:
- Current/Voltage Rating: Rated for 30 amps and 125V AC, single phase
- NEMA Configuration: L5-30, compatible with L5-30P plugs
- Ingress Protection: IP66
- NEMA Type 4, 4X, and 12 rated for resistance to water and dust ingress
- Material Construction: Thermoplastic housing
- brass blades and contacts
- nylon body
- PBT flange
- stainless steel screws
- Cord Size Compatibility: Accepts wire sizes from 16 AWG to 8 AWG via screw terminals
- Operating Temperature Range: -40°C to +75°C maximum operating temperature
- Flammability Rating: UL94 V-0 flame retardant materials used throughout construction
- Mounting Style: Flush mount flanged design with shrouded construction for added protection
- Special Feature: Includes closure cap for sealing when not connected
- Standards Compliance: CSA Type 4, 4X & Type 12 certified
- UL Listed product suitable for general industrial use
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 4.00
- Package Height: 4.10
- Package Weight: 0.50
