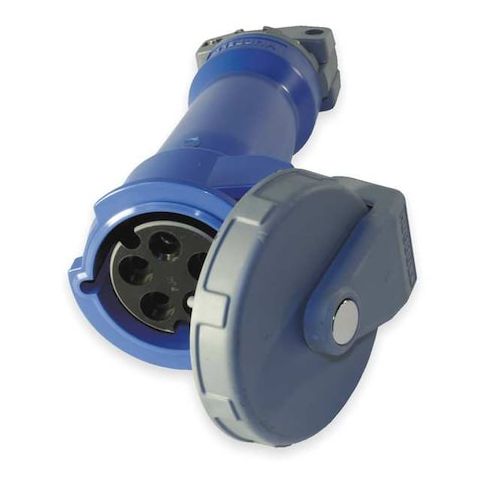

Watertight Pin & Sleeve Connector, 30 A, 120/208V AC, Three Phase, 4 Pole, IEC Grounding, Blue MPN:HBL530C9W

• The HUBBELL IEC Pin and Sleeve Connector is a Heavy-duty electrical connector rated for 30 amps and suitable for use in industrial settings. Rated for 30 amps and 120/208V AC three-phase power, this connector features a rugged Zytel 801 nylon body with an insulated non-metallic housing.





  Key Features of the HUBBELL IEC Pin and Sleeve Connector:





  • Current/Voltage Rating: Rated for 30 A at 120/208V AC, three-phase


  • Body Material: Zytel 801 nylon construction


  • Environmental Conditions: Ingress protection: IP68/IP69K rating


  • Cord Grip: External cord grip designed to provide strain relief on conductors


  • Conductor Range: Accepts wire sizes from #12 AWG to #8 AWG


  • Number of Poles/Wires: Four poles, five wires (5-wire grounding)


  • Cable Diameter Compatibility: Compatible with cable diameters from 0.5 in to 1.45 in


  • Connection Type: Screw terminals (pressure terminal screws)


  • Housing Features: Color-coded blue housing for voltage identification
  • self-closing gasketed cover
  • shrouded spring-loaded cap


  • Temperature Rating: Operates between -40°C and +75°C continuous temperature without impact (-25°C minimum with impact)


  • Standards Compliance: CSA Certified LR280C, UL Classified to IEC 60309-1/-2, UL E146033
