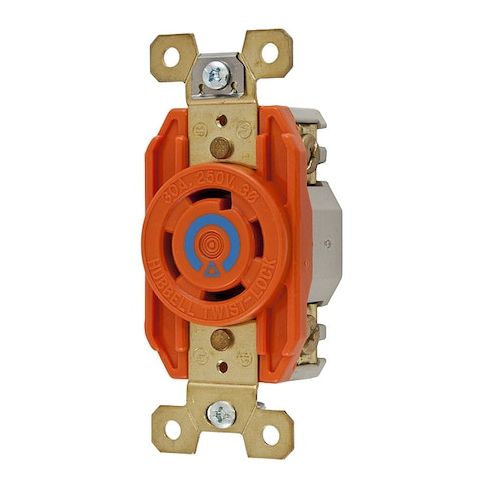

Locking Receptacle, L15-30R, 30 A, 250V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals MPN:IG2720
Free Shipping
In Stock
The HUBBELL 30A Isolated Ground Locking Receptacle is a reliable and safe choice for commercial and industrial settings. Its isolated ground feature provides a secure connection, while the twist-lock mechanism ensures a tight seal. Suitable for high-voltage applications, this receptacle is rated for 30A and up to 250V AC operation. Its durable nylon housing and brass contacts withstand harsh environments, making it ideal for use in areas with high temperatures or exposure to moisture. Perfect for data centers, manufacturing facilities, and other high-power applications, this receptacle provides a secure and reliable connection for critical equipment.
Top product features:
- Amperage/Voltage: Rated for 30 A and up to 250V AC operation
- Three-pole, four-wire design
- Isolated Ground: Insulation barrier construction isolates ground contact from mounting strap
Top product applications:
- Commercial Construction Sites
- Industrial Manufacturing Facilities
- Heavy-Duty Machinery Installations
The HUBBELL 30A Isolated Ground Locking Receptacle is an industrial-grade device intended for use in commercial and industrial settings. Featuring an isolated ground, this receptacle provides an isolated ground to separate the ground contacts from the mounting strap. It accommodates three poles and four wires, operates at 240V AC (rated up to 250V AC), and uses a twist-lock mechanism with NEMA L15-30R configuration for reliable connection integrity.
Key Features of the HUBBELL 30A Isolated Ground Locking Receptacle:
- Amperage/Voltage: Rated for 30 A and up to 250V AC operation
- NEMA Configuration: L15-30R
- three-pole, four-wire design
- Isolated Ground: Insulation barrier construction isolates ground contact from mounting strap
- Material Construction: nylon housing with brass contacts
- Mounting Type: Flush mount with included screw hardware
- Wire Accommodation: Accepts #16 AWG – #8 AWG solid or stranded copper wire via screw terminals
- Operating Temperature Range: -40°C minimum (without impact) to maximum continuous 75°C
- withstands temperature rise up to 30°C at full rated current after overload cycles
- Dielectric Strength & Flammability Rating: Withstands minimum of 2,000V dielectric voltage
- UL94 V-2 flammability rating or better
- NEMA Enclosure/IP Rating: NEMA Type 1 enclosure
- IP20 rated for indoor dry locations unless otherwise protected
- Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, listed to UL498 standards
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.30
- Package Width: 4.50
- Package Height: 3.30
- Package Weight: 3.40
