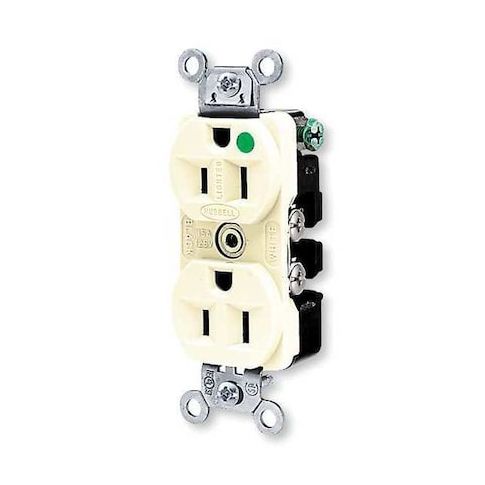

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:HBL8200ILI

• The HUBBELL 15A Duplex Receptacle 125VAC 5-15R IV is a traditional duplex outlet rated as hospital grade

• suitable for use in demanding environments. It features a compact, impact-resistant polycarbonate housing and is rated for indoor use in dry locations. The receptacle supports both back and side wiring with screw terminals, accommodating #14 to #10 AWG copper wire. Meets UL requirements for hospital grade devices, it includes an illuminated face with two LEDs and a four-point grounding system.




  Key Features of the HUBBELL 15A Duplex Receptacle:





  • Amperage/Voltage: Rated for 15 A at 125 VAC


  • NEMA Configuration: 5-15R (2-pole, 3-wire)


  • Wiring Method: Back and side wired screw terminals
  • accepts #14–#10 AWG copper wire


  • Material: Impact-resistant polycarbonate housing
  • nickel-plated brass contacts


  • Grounding: Four-point grounding system


  • Illumination: Entire face illuminated by two LEDs for visibility


  • Operating Temperature Range: -40°C to +75°C (without impact)


  • Dielectric Strength: Withstands minimum of 2,000V


  • Certifications/Standards: CSA Certified C22.2 No.42 File 285
  • Federal Specification W-C-596
  • NEMA WD-6
  • UL Listed to UL498 File E2186
