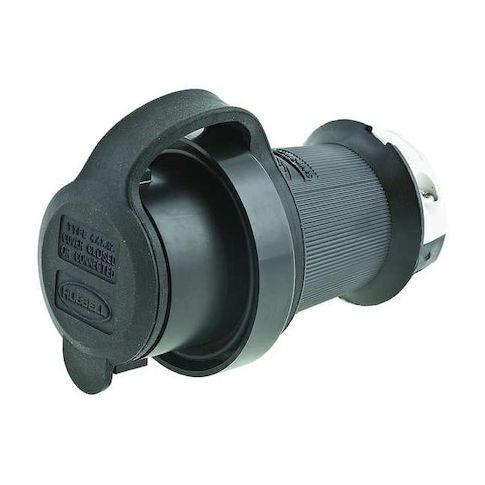

Watertight Locking Plug, L5-20P, 20 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black, White MPN:HBL2311SW
Free Shipping
In Stock
Protect your equipment and ensure reliable operation in harsh environments with the HUBBELL 20A Watertight Twist-Lock Plug. This rugged plug is designed for use in outdoor settings, such as construction sites, farms, or marine environments, where moisture, dust, and weather exposure are common. Its twist-lock design and IP66 rated enclosure prevent accidental disconnection and protect against arcing when connecting or disconnecting under load. Suitable for a variety of applications, including industrial machinery, generators, and welders, this plug provides a secure and reliable connection for your equipment, reducing downtime and ensuring safe operation.
Top product features:
- Twist-lock design maintains connection during operation and reduces the risk of accidental disconnection and arcing when connecting or disconnecting under load.
- The plug features an IP66 rated enclosure to protect against moisture, dust, and weather exposure during use.
- The plug accepts cord diameters from 0.36 in to 0.93 in and is suitable for wire sizes ranging from 16 AWG to 8 AWG.
Top product applications:
- Outdoor Construction and Industrial Sites
- Marine and Offshore Applications
- Agricultural and Farm Equipment
The HUBBELL 20A Watertight Twist-Lock Plug (L5-20P) is a locking plug rated for use in specified environments. Rated for 20 amps and 125V AC, this plug features an IP66 rated enclosure to protect against moisture, dust, and weather exposure during use. Its twist-lock design intended to maintain connection during operation reduces the risk of accidental disconnection and limits arcing when connecting or disconnecting under load.
Key Features of the HUBBELL 20A Watertight Twist-Lock Plug:
- Current/Voltage Rating: Designed for 20 A at 125V AC
- single phase
- Construction: Impact-resistant housing made from polybutylene terephthalate (PBT)
- shrouded design protects blades from bending or breaking
- Cord Accommodation: Accepts cord diameters from 0.36 in to 0.93 in
- suitable for wire sizes ranging from 16 AWG to 8 AWG
- Connection Type: Screw terminals with standard wiring style
- polarized and grounded configuration
- Material Details: Brass blades and contacts
- stainless steel screws
- clear polycarbonate retainer
- Operating Temperature Range: -40°C to +75°C maximum operating temperature
- Chemical Resistance: Chemical- and impact-resistant materials
- Flammability Rating: UL94 V-0 rated materials used throughout construction
- Ingress Protection & Standards: IP66 rated
- CSA Certified Type 4 and UL Listed compliance
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.20
- Package Width: 3.10
- Package Height: 3.40
- Package Weight: 0.50
