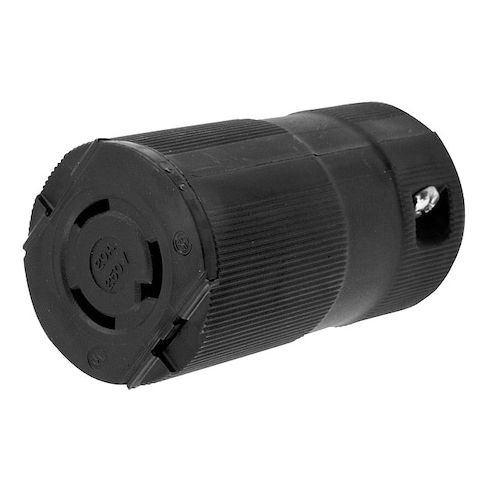

Locking Connector, L6-20R, 20 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Black MPN:HBL2323VBK
Free Shipping
In Stock
The HUBBELL 20A Midget Locking Connector (L6-20R) is a reliable and secure solution for industrial electrical connections in indoor dry locations. Rated for up to 20 amps at 250V AC, this two-pole connector features screw terminals that bundle conductor strands when tightened, ensuring a secure and efficient connection. Its nylon housing and insulated thermoplastic body provide excellent durability and protection against environmental factors. Ideal for applications such as machinery, equipment, and power distribution, this connector offers a high level of safety and reliability, making it a valuable addition to any industrial electrical setup.
Top product features:
- Two-pole, three-wire configuration
- Clamp-type terminals that bundle conductor strands when tightened
- Integrated cord grip prevents slippage and reduces strain on terminals during use
Top product applications:
- Industrial electrical connections in indoor dry locations
- Electrical connections in commercial and residential settings
- Heavy-duty machinery and equipment installations
The HUBBELL 20A Midget Locking Connector (L6-20R) is an industrial locking connector intended for electrical connections in indoor dry locations. It features a two-pole, three-wire configuration and is rated for up to 20 amps at 250V AC. The connector utilizes clamp-type terminals that bundle conductor strands when tightened.
Key Features of the HUBBELL 20A Midget Locking Connector:
- Amperage/Voltage Rating: Rated for 20 A and up to 250V AC single-phase applications.
- NEMA Configuration: L6-20R with straight connection orientation.
- Cable Range: Accepts cord diameters from 0.325" to 0.720".
- Wire Size Compatibility: Accommodates #14 AWG to #8 AWG stranded copper wire using screw terminals.
- Nylon housing
- insulated thermoplastic body
- Brass contacts
- Cord Grip: Integrated cord grip prevents slippage and reduces strain on terminals during use.
- Temperature Rating: Operates continuously from -40°C (without impact) up to +75°C maximum temperature rise of ≤30°C after overload cycles.
- Flame Resistance & Dielectric Strength: Meets UL94 HB flammability rating
- withstands dielectric voltage of at least 2,000V minimum per standards CSA C22.2 No.42, Fed.Spec. W-C-596, UL498 certification requirements.
- IP Rating & Environmental Suitability: IP20 rated for indoor dry conditions unless protected by additional means
- not shrouded or capped design.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.20
- Package Width: 2.20
- Package Height: 3.80
- Package Weight: 0.25
