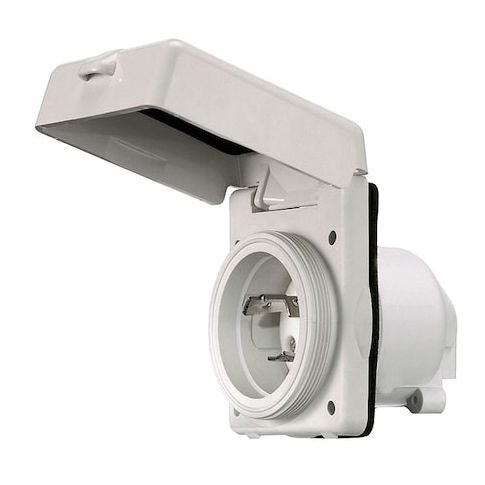

Flanged Locking Inlet, 30 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals, White MPN:HBL303NM
Free Shipping
In Stock
The HUBBELL 30A Marine Flanged Locking Inlet is a rugged and reliable solution for marine wiring applications, providing a secure and corrosion-resistant connection for 30A at 125V AC single-phase power. Designed for use in harsh marine environments, this inlet features a flanged design with a thermoplastic housing and nickel-plated brass blades, ensuring a watertight seal and protecting against corrosion. Perfect for use on boats, yachts, and other marine vessels, this inlet is also ideal for use in commercial and industrial settings where a reliable and secure power connection is critical.
Top product features:
- Accommodates wire sizes from #12 AWG to #10 AWG using screw terminals.
- Supports 30A at 125V AC single-phase power.
- Has a thermoplastic housing with IP56 rating and corrosion resistance.
Top product applications:
- Marine vessels and boats
- Offshore oil and gas platforms
- Commercial marine-grade electrical installations
The HUBBELL 30A Marine Flanged Locking Inlet is a hull mount, single-phase inlet intended for use in marine wiring applications. It features a flanged design with a thermoplastic housing with IP56 rating and corrosion resistance, rated for use in specified environmental conditions. The inlet supports 30A at 125V AC and accommodates wire sizes from #12 AWG to #10 AWG using screw terminals.
Key Features of the HUBBELL 30A Marine Flanged Locking Inlet:
- Amperage/Voltage: Rated for 30 A, 125V AC single-phase power
- NEMA Configuration: L5-30P plug compatibility
- L5-30R receptacle configuration
- Material Construction: Thermoplastic/composite housing with nickel-plated brass blades
- Environmental Resistance: IP56 ingress protection, corrosion resistance
- Rated operating temperature range: -40°C to +75°C
- Circuit Details: Two poles, three wires
- includes grounding terminal
- Mounting Type: Flush mount with included screw mounting hardware
- Cover Feature: Self-closing cover
- Standards Compliance: UL Listed
- meets industry standards for marine-grade devices
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.20
- Package Width: 4.70
- Package Height: 3.80
- Package Weight: 0.60
