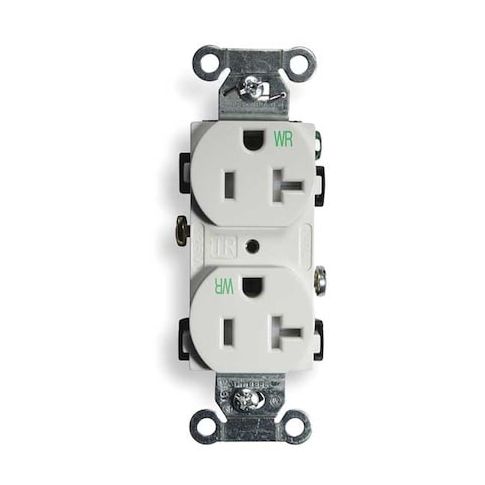

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:BR20WHIWRTR
Free Shipping
In Stock
The HUBBELL 20A Duplex Receptacle 125VAC 5-20R WH is a reliable and versatile electrical outlet designed for industrial and commercial settings. Suitable for use in high-traffic areas, this duplex receptacle features tamper-resistant shutters and weather-resistant construction to meet national electrical code requirements. Its flush mount design and grounding capability provide enhanced safety and convenience. Ideal for use in offices, restaurants, retail spaces, and other commercial settings, this receptacle supports back and side wiring methods and accommodates #12–#10 AWG copper conductors. With its durable construction and NEMA WD-6 compliance, it's a great choice for applications where reliability and safety are paramount.
Top product features:
- Shutters intended to deter insertion of foreign objects
- Supports both back and side wiring methods
- Includes grounding capability for enhanced safety
Top product applications:
- Industrial Settings
- Commercial Settings
- Outdoor or Damp Locations
The HUBBELL 20A Duplex Receptacle 125VAC 5-20R WH is an electrical outlet suitable for installation in industrial and commercial settings. This duplex receptacle features includes shutters intended to deter insertion of foreign objects and weather-resistant construction, meeting national electrical code requirements. It supports both back and side wiring methods, accommodates #12–#10 AWG copper conductors, and includes grounding capability for enhanced safety.
Key Features of the HUBBELL 20A Duplex Receptacle:
- Amperage/Voltage: Rated for 20A, 125V AC operation
- NEMA Configuration: 5-20R duplex style with traditional face shape
- Tamper & Weather Resistant: Includes features rated for resistance to foreign object insertion and exposure to outdoor or damp conditions
- Material Construction: Nylon housing with wrap-around galvanized steel strap
- brass triple wipe contacts
- Mounting Type: Flush mount installation
- includes mounting hardware
- Wiring Method: Accepts both back and side wire connections (#12–#10 AWG copper only)
- Grounding: Grounded design with included grounding staple
- Certification & Standards: UL Listed (UL498), CSA Certified C22.2 No.42, NEMA WD-6 compliant
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.30
- Package Width: 1.60
- Package Height: 1.20
- Package Weight: 1.15
